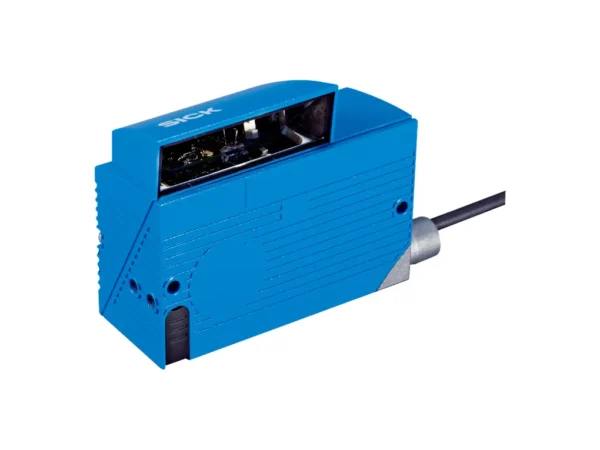

1 x “PROFINET P1” connection, 4-pin M12 female connector, D-coded
1 x “PROFINET P2” connection, 4-pin M12 socket, D-coded
Supply voltage
10 V DC … 30 V DC
Power consumption
5 W
Housing
Aluminum die cast
Housing color
Light blue (RAL 5012)
Window material
Glass
Enclosure rating
IP65 (DIN 40 050)
Protection class
III (VDE 0106/IEC 1010-1)
Weight
310.5 g
Dimensions (L x W x H)
80 mm x 96 mm x 38 mm
MTBF
100,000 h
MTTF
40,000 h (Laser diode)
Performance
Readable code structures
1D codes
Bar code types
All current code types
Code printing process
Label (printed codes)
Print ratio
2:1 … 3:1
No. of codes per scan
1 … 10 (Standard decoder)
1 … 6 (SMART620)
No. of codes per reading interval
1 … 50 (auto-discriminating)
No. of characters per reading interval
1,500
No. of multiple readings
1 … 99
Interfaces
PROFINET
✔
Function
PROFINET Single Port, PROFINET Dual Port
Data transmission rate
2-port Ethernet in accordance with IEEE 802.3 (baud rate 100 MBit/s, full-duplex transmission, 2-port switch, auto-negotiation, auto-crossover). Maximum data length is limited by the mode of communication (fragmentation protocol) to 4,000 bytes.
Digital inputs
2 (1 x “Sensor 1”, 1 x via PROFINET Ctrl bits)
Digital outputs
4 (via PROFINET Ctrl bits)
Reading pulse
Non-powered
Optical indicators
5 LEDs
Configuration software
SOPAS ET
Memory card
MicroSD memory card (flash card), optional
Ambient data
Electromagnetic compatibility (EMC)
EN 61000-6-4 (2007-01) + A1 (2011) / EN 61000-6-2:2005-08
