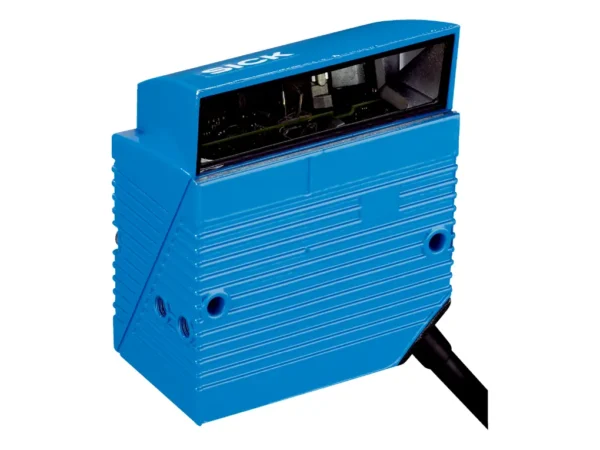

| Features |
| Version |
Mid Range |
| Connection type |
Cable |
| Reading field |
Side (105°) |
| Sensor type |
Raster scanner |
| Optical focus |
Fixed focus |
| Light source |
Light spot, laser, Visible, Red, 655 nm |
| Laser class |
2 (IEC 60825-1:2014, EN 60825-1:2014) |
| Aperture angle |
≤ 50° |
| Reading distance |
45 mm … 345 mm |
| Scanning frequency |
400 Hz … 1,000 Hz |
| Code resolution |
0.2 mm … 1 mm |
| Raster height, number of lines, at distance |
15 mm, 8, 185 mm |
|
| Mechanics/electronics |
| Connection type |
1 x 15-pin D-Sub HD male connector (0.9 m) |
| Supply voltage |
10 V DC … 30 V DC |
| Power consumption |
2.8 W |
| Housing |
Aluminum die cast |
| Housing color |
Light blue (RAL 5012) |
| Window material |
Glass |
| Enclosure rating |
IP65 (DIN 40 050) |
| Protection class |
III (VDE 0106/IEC 1010-1) |
| Weight |
295 g, with connecting cable |
| Dimensions (L x W x H) |
80 mm x 66 mm x 38 mm |
| MTBF |
100,000 h |
| MTTF |
40,000 h (Laser diode) |
|
| Performance |
| Readable code structures |
1D codes |
| Bar code types |
All current code types, Code 39, Code 128, Code 93, Codabar, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode |
| Code printing process |
Label (printed codes) |
| Print ratio |
2:1 … 3:1 |
| No. of codes per scan |
1 … 10 (Standard decoder)
1 … 6 (SMART620)
|
| No. of codes per reading interval |
1 … 50 (auto-discriminating) |
| No. of characters per reading interval |
1,500
500 (for multiplexer function in CAN operation)
|
| No. of multiple readings |
1 … 99 |
|
| Interfaces |
| Serial |
✔ , RS-232 |
| Function |
Data interface (read result output), Service interface |
| Data transmission rate |
2,400 Baud … 115.2 kBaud, AUX: 57.6 kBaud |
|
| CAN |
✔ |
| Function |
SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) |
| Data transmission rate |
20 kbit/s … 1 Mbit/s |
|
| Digital inputs |
4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional parameter storage CMC600 in CDB620/CDM420) |
| Digital outputs |
4 (“Result 1”, “Result 2”, 2 outputs via optional parameter storage CMC600 in CDB620/CDM420) |
| Reading pulse |
Digital inputs, non-powered, serial interface, auto pulse, CAN |
| Optical indicators |
1 RGB LED (multifunctional) |
| Acoustic indicators |
Beeper/buzzer (can be switched off, can be allocated as a result indication function) |
| Configuration software |
SOPAS ET |
|
| Ambient data |
| Electromagnetic compatibility (EMC) |
EN 61000-6-4 (2007-01) + A1 (2011) / EN 61000-6-2:2005-08 |
| Vibration resistance |
EN 60068-2-6:2008-02 |
| Shock resistance |
EN 60068-2-27:2009-05 |
| Ambient operating temperature |
0 °C … +40 °C |
| Storage temperature |
–20 °C … +70 °C |
| Permissible relative humidity |
90 %, Non-condensing |
| Ambient light immunity |
2,000 lx, on barcode |
| Bar code print contrast (PCS) |
≥ 60 % |
|
| General notes |
| Items supplied |
Single scanner |
|
| Classifications |
| ECLASS 5.0 |
27280102 |
| ECLASS 5.1.4 |
27280102 |
| ECLASS 6.0 |
27280102 |
| ECLASS 6.2 |
27280102 |
| ECLASS 7.0 |
27280102 |
| ECLASS 8.0 |
27280102 |
| ECLASS 8.1 |
27280102 |
| ECLASS 9.0 |
27280102 |
| ECLASS 10.0 |
27280102 |
| ECLASS 11.0 |
27280102 |
| ECLASS 12.0 |
27280102 |
| ETIM 5.0 |
EC002550 |
| ETIM 6.0 |
EC002550 |
| ETIM 7.0 |
EC002550 |
| ETIM 8.0 |
EC002550 |
| UNSPSC 16.0901 |
43211701 |
|
