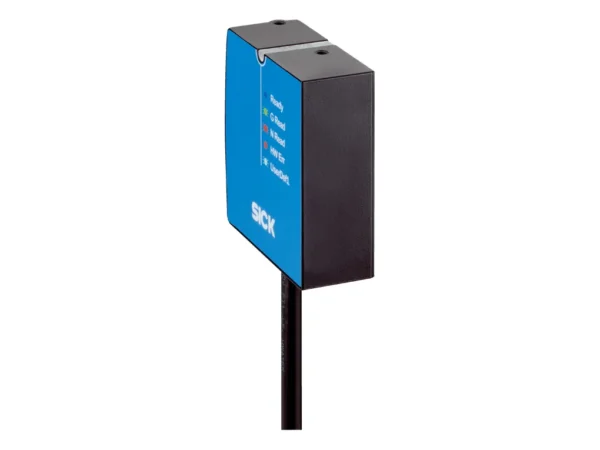

Home Barkod Okuyucular CLV601-1U110 – 1079207 🔍 CLV601-1U110 – 1079207 ✉ Teklif Al Teklif Al Stok kodu: 1079207 Kategoriler: Barkod Okuyucular Marka: SICK Açıklama Tecnichal data Features Connection type Cable Reading field Side Sensor type Line scanner Optical focus Fixed focus (31 mm) Sensor CMOS line sensor Sensor resolution 2,048 px Light source Light spot, LED, Visible, Red, 626 nm LED class Risk group 0 (IEC 62471:2006-07, EN 62471:2008-09) Aperture angle ≤ 71° Reading distance 15 mm … 70 mm Scanning frequency 750 Hz Reading angle Tilt α ± 5° (with code resolution ≥ 0.125 mm)± 10° (with code resolution ≥ 0.15 mm)± 15° (with code resolution ≥ 0.2 mm)± 25° (with code resolution ≥ 0.35 mm) Pitch β ± 6° (with code resolution ≥ 0.2 mm)± 15° (with code resolution ≥ 0.5 mm) Skew γ ± 20° (with code resolution ≥ 0.2 mm)± 30° (with code resolution ≥ 0.5 mm) Code resolution 0.125 mm … 0.5 mm Mechanics/electronics Connection type 1 x USB A male connector (1.5 m) Supply voltage 5 V DC, ± 10 % Power consumption Typ. 1 W Housing Zinc diecast Housing color Light blue (RAL 5012), black (RAL 9005) Window material Plastic Enclosure rating IP40 (DIN 40 050) Protection class III (VDE 0106/IEC 1010-1) Weight 170 g, with connecting cable Dimensions (L x W x H) 55 mm x 52 mm x 20 mm MTBF 100,000 h Performance Readable code structures 1D codes Bar code types All current code types, Code 39, Code 128, Code 93, Codabar, UPC / GTIN / EAN, Interleaved 2 of 5 Code printing process Label (printed codes) Print ratio 2:1 … 3:1 No. of codes per scan 1 … 1 No. of codes per reading interval 1 … 15 (auto-discriminating) No. of characters per reading interval 450 Number of characters per code ≤ 30 No. of multiple readings 1 … 100 Interfaces USB ✔ Remark USB 2.0 Function Keyboard wedge, COM-Port emulation, connection to SOPAS ET software, Host and AUX Digital inputs 0 Digital outputs Virtual (via SOPAS ET) Reading pulse Start: Free, command, auto pulse, Stop: Command, timer, Good Read Optical indicators 1 RGB LED (multifunctional) Acoustic indicators Beeper/buzzer (can be switched off, can be allocated as a result indication function) Configuration software SOPAS ET Ambient data Electromagnetic compatibility (EMC) EN 61000-6-3/A1:2011-03 / EN 61000-6-2:2005-08 Vibration resistance EN 60068-2-6:2008-02 Shock resistance EN 60068-2-27:2009-05 Ambient operating temperature 0 °C … +50 °C Storage temperature –20 °C … +70 °C Permissible relative humidity 90 %, Non-condensing Ambient light immunity 5,000 lx, on barcode Bar code print contrast (PCS) ≥ 60 % General notes Items supplied Single scanner, Safety Notes Classifications ECLASS 5.0 27280102 ECLASS 5.1.4 27280102 ECLASS 6.0 27280102 ECLASS 6.2 27280102 ECLASS 7.0 27280102 ECLASS 8.0 27280102 ECLASS 8.1 27280102 ECLASS 9.0 27280102 ECLASS 10.0 27280102 ECLASS 11.0 27280102 ECLASS 12.0 27280102 ETIM 5.0 EC002550 ETIM 6.0 EC002550 ETIM 7.0 EC002550 ETIM 8.0 EC002550 UNSPSC 16.0901 43211701 İlgili ürünler CLV630-0120F0 – 1063470SICKBarkod Okuyucular ₺12.000,00 Ürüne Git CLV601-1D200 – 1079206SICKBarkod Okuyucular ₺12.000,00 Ürüne Git CLV618-D2540 – 1091390SICKBarkod Okuyucular ₺12.000,00 Ürüne Git CLV615-D2540 – 1091389SICKBarkod Okuyucular ₺12.000,00 Ürüne Git
Tecnichal data Features Connection type Cable Reading field Side Sensor type Line scanner Optical focus Fixed focus (31 mm) Sensor CMOS line sensor Sensor resolution 2,048 px Light source Light spot, LED, Visible, Red, 626 nm LED class Risk group 0 (IEC 62471:2006-07, EN 62471:2008-09) Aperture angle ≤ 71° Reading distance 15 mm … 70 mm Scanning frequency 750 Hz Reading angle Tilt α ± 5° (with code resolution ≥ 0.125 mm)± 10° (with code resolution ≥ 0.15 mm)± 15° (with code resolution ≥ 0.2 mm)± 25° (with code resolution ≥ 0.35 mm) Pitch β ± 6° (with code resolution ≥ 0.2 mm)± 15° (with code resolution ≥ 0.5 mm) Skew γ ± 20° (with code resolution ≥ 0.2 mm)± 30° (with code resolution ≥ 0.5 mm) Code resolution 0.125 mm … 0.5 mm Mechanics/electronics Connection type 1 x USB A male connector (1.5 m) Supply voltage 5 V DC, ± 10 % Power consumption Typ. 1 W Housing Zinc diecast Housing color Light blue (RAL 5012), black (RAL 9005) Window material Plastic Enclosure rating IP40 (DIN 40 050) Protection class III (VDE 0106/IEC 1010-1) Weight 170 g, with connecting cable Dimensions (L x W x H) 55 mm x 52 mm x 20 mm MTBF 100,000 h Performance Readable code structures 1D codes Bar code types All current code types, Code 39, Code 128, Code 93, Codabar, UPC / GTIN / EAN, Interleaved 2 of 5 Code printing process Label (printed codes) Print ratio 2:1 … 3:1 No. of codes per scan 1 … 1 No. of codes per reading interval 1 … 15 (auto-discriminating) No. of characters per reading interval 450 Number of characters per code ≤ 30 No. of multiple readings 1 … 100 Interfaces USB ✔ Remark USB 2.0 Function Keyboard wedge, COM-Port emulation, connection to SOPAS ET software, Host and AUX Digital inputs 0 Digital outputs Virtual (via SOPAS ET) Reading pulse Start: Free, command, auto pulse, Stop: Command, timer, Good Read Optical indicators 1 RGB LED (multifunctional) Acoustic indicators Beeper/buzzer (can be switched off, can be allocated as a result indication function) Configuration software SOPAS ET Ambient data Electromagnetic compatibility (EMC) EN 61000-6-3/A1:2011-03 / EN 61000-6-2:2005-08 Vibration resistance EN 60068-2-6:2008-02 Shock resistance EN 60068-2-27:2009-05 Ambient operating temperature 0 °C … +50 °C Storage temperature –20 °C … +70 °C Permissible relative humidity 90 %, Non-condensing Ambient light immunity 5,000 lx, on barcode Bar code print contrast (PCS) ≥ 60 % General notes Items supplied Single scanner, Safety Notes Classifications ECLASS 5.0 27280102 ECLASS 5.1.4 27280102 ECLASS 6.0 27280102 ECLASS 6.2 27280102 ECLASS 7.0 27280102 ECLASS 8.0 27280102 ECLASS 8.1 27280102 ECLASS 9.0 27280102 ECLASS 10.0 27280102 ECLASS 11.0 27280102 ECLASS 12.0 27280102 ETIM 5.0 EC002550 ETIM 6.0 EC002550 ETIM 7.0 EC002550 ETIM 8.0 EC002550 UNSPSC 16.0901 43211701
