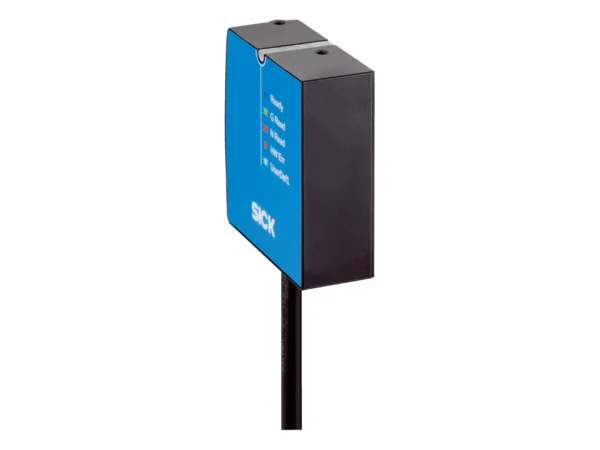

| Features |
| Connection type |
Cable |
| Reading field |
Side |
| Sensor type |
Line scanner |
| Optical focus |
Fixed focus (31 mm) |
| Sensor |
CMOS line sensor |
| Sensor resolution |
2,048 px |
| Light source |
Light spot, LED, Visible, Red, 626 nm |
| LED class |
Risk group 0 (IEC 62471:2006-07, EN 62471:2008-09) |
| Aperture angle |
≤ 71° |
| Reading distance |
15 mm … 70 mm |
| Scanning frequency |
750 Hz |
| Reading angle |
|
| Tilt α |
± 5° (with code resolution ≥ 0.125 mm)
± 10° (with code resolution ≥ 0.15 mm)
± 15° (with code resolution ≥ 0.2 mm)
± 25° (with code resolution ≥ 0.35 mm) |
| Pitch β |
± 6° (with code resolution ≥ 0.2 mm)
± 15° (with code resolution ≥ 0.5 mm) |
| Skew γ |
± 20° (with code resolution ≥ 0.2 mm)
± 30° (with code resolution ≥ 0.5 mm) |
|
| Code resolution |
0.125 mm … 0.5 mm |
|
| Mechanics/electronics |
| Connection type |
1 x 9-pin D-sub male connector (2 m) |
| Supply voltage |
5 V DC, ± 10 % |
| Power consumption |
Typ. 1 W |
| Housing |
Zinc diecast |
| Housing color |
Light blue (RAL 5012), black (RAL 9005) |
| Window material |
Plastic |
| Enclosure rating |
IP40 (DIN 40 050) |
| Protection class |
III (VDE 0106/IEC 1010-1) |
| Weight |
230 g, with connecting cable |
| Dimensions (L x W x H) |
55 mm x 52 mm x 20 mm |
| MTBF |
100,000 h |
|
| Performance |
| Readable code structures |
1D codes |
| Bar code types |
All current code types, Code 39, Code 128, Code 93, Codabar, UPC / GTIN / EAN, Interleaved 2 of 5 |
| Code printing process |
Label (printed codes) |
| Print ratio |
2:1 … 3:1 |
| No. of codes per scan |
1 … 1 |
| No. of codes per reading interval |
1 … 15 (auto-discriminating) |
| No. of characters per reading interval |
450 |
| Number of characters per code |
≤ 30 |
| No. of multiple readings |
1 … 100 |
|
| Interfaces |
| Serial |
✔ , RS-232 |
| Function |
Data interface (read result output), Service interface |
| Data transmission rate |
2,400 Baud … 250 kBaud, AUX: 57.6 kBaud |
|
| Digital inputs |
1 (“Input 1”, Vin = max. 30 V) |
| Digital outputs |
2 (“Output 1”, “Output 2”, Iout = max. 50 mA) |
| Reading pulse |
Start: Digital input, free, command, auto pulse, stop: Digital input, free, command, timer, Good Read |
| Optical indicators |
1 RGB LED (multifunctional) |
| Acoustic indicators |
Beeper/buzzer (can be switched off, can be allocated as a result indication function) |
| Configuration software |
SOPAS ET |
|
| Ambient data |
| Electromagnetic compatibility (EMC) |
EN 61000-6-3/A1:2011-03 / EN 61000-6-2:2005-08 |
| Vibration resistance |
EN 60068-2-6:2008-02 |
| Shock resistance |
EN 60068-2-27:2009-05 |
| Ambient operating temperature |
0 °C … +50 °C |
| Storage temperature |
–20 °C … +70 °C |
| Permissible relative humidity |
90 %, Non-condensing |
| Ambient light immunity |
5,000 lx, on barcode |
| Bar code print contrast (PCS) |
≥ 60 % |
|
| General notes |
| Items supplied |
Single scanner, Safety Notes |
|
| Classifications |
| ECLASS 5.0 |
27280102 |
| ECLASS 5.1.4 |
27280102 |
| ECLASS 6.0 |
27280102 |
| ECLASS 6.2 |
27280102 |
| ECLASS 7.0 |
27280102 |
| ECLASS 8.0 |
27280102 |
| ECLASS 8.1 |
27280102 |
| ECLASS 9.0 |
27280102 |
| ECLASS 10.0 |
27280102 |
| ECLASS 11.0 |
27280102 |
| ECLASS 12.0 |
27280102 |
| ETIM 5.0 |
EC002550 |
| ETIM 6.0 |
EC002550 |
| ETIM 7.0 |
EC002550 |
| ETIM 8.0 |
EC002550 |
| UNSPSC 16.0901 |
43211701 |
|
