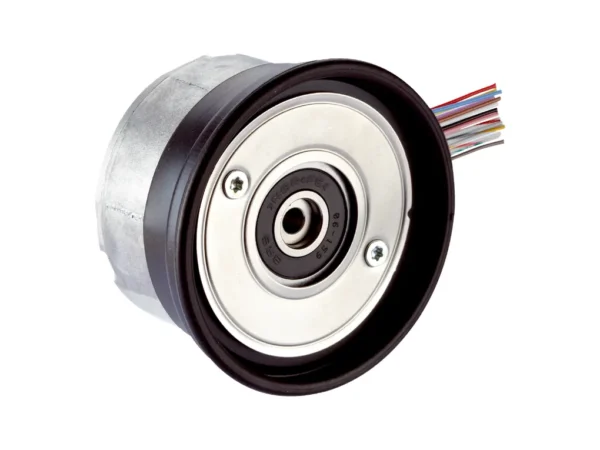

Home Enkoderler CFS50-AEV12X06 – 1080394 🔍 CFS50-AEV12X06 – 1080394 ✉ Teklif Al Teklif Al Stok kodu: 1080394 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Number of lines per revolution 4,096 Measuring step 90° /number of lines Commutation signals 6 pole pairs (See diagram, different commutation on request) Reference signal, number 1 Reference signal, position 90° electric, logically gated with A and B Operating speed ≤ 6,000 min⁻¹ Interfaces Communication interface Incremental Electrical data Connection type Stranded wire, 15-pin, radial Supply voltage 4.5 V DC … 5.5 V DC Current consumption 60 mA Maximum output frequency ≤ 820 kHz MTTF: mean time to dangerous failure 355 years (EN ISO 13849) Mechanical data Shaft version Tapered shaft Flange type / stator coupling Rubber support Dimensions See dimensional drawing Weight 0.1 kg Moment of inertia of the rotor 10 gcm² Operating speed 12,000 min⁻¹ Angular acceleration ≤ 200,000 rad/s² Operating torque 0.2 Ncm Start up torque 0.4 Ncm Permissible movement of the drive element, static Radial ± 0.75 mm axial Permissible movement of the drive element, dynamic ± 0.1 mm radial ± 0.2 mm axial Angular motion perpendicular to the rotational axis, static ± 0.005 mm/mm Angular motion perpendicular to the rotational axis, dynamic ± 0.0025 mm/mm Life of ball bearings 3.6 x 109 revolutions Ambient data Operating temperature range –20 °C … +115 °C Storage temperature range –40 °C … +125 °C, without package Relative humidity/condensation 90 %, Condensation not permitted Resistance to shocks 100 g, 10 ms (according to EN 60068-2-27) Frequency range of resistance to vibrations 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP40 (IEC 60529) Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27273805 eCl@ss 11.0 27273901 eCl@ss 12.0 27273901 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 847T-DN1A-RG02000ALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 1746-HSCEALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 847T-DN2A-RG03000ALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP14BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Number of lines per revolution 4,096 Measuring step 90° /number of lines Commutation signals 6 pole pairs (See diagram, different commutation on request) Reference signal, number 1 Reference signal, position 90° electric, logically gated with A and B Operating speed ≤ 6,000 min⁻¹ Interfaces Communication interface Incremental Electrical data Connection type Stranded wire, 15-pin, radial Supply voltage 4.5 V DC … 5.5 V DC Current consumption 60 mA Maximum output frequency ≤ 820 kHz MTTF: mean time to dangerous failure 355 years (EN ISO 13849) Mechanical data Shaft version Tapered shaft Flange type / stator coupling Rubber support Dimensions See dimensional drawing Weight 0.1 kg Moment of inertia of the rotor 10 gcm² Operating speed 12,000 min⁻¹ Angular acceleration ≤ 200,000 rad/s² Operating torque 0.2 Ncm Start up torque 0.4 Ncm Permissible movement of the drive element, static Radial ± 0.75 mm axial Permissible movement of the drive element, dynamic ± 0.1 mm radial ± 0.2 mm axial Angular motion perpendicular to the rotational axis, static ± 0.005 mm/mm Angular motion perpendicular to the rotational axis, dynamic ± 0.0025 mm/mm Life of ball bearings 3.6 x 109 revolutions Ambient data Operating temperature range –20 °C … +115 °C Storage temperature range –40 °C … +125 °C, without package Relative humidity/condensation 90 %, Condensation not permitted Resistance to shocks 100 g, 10 ms (according to EN 60068-2-27) Frequency range of resistance to vibrations 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP40 (IEC 60529) Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27273805 eCl@ss 11.0 27273901 eCl@ss 12.0 27273901 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
