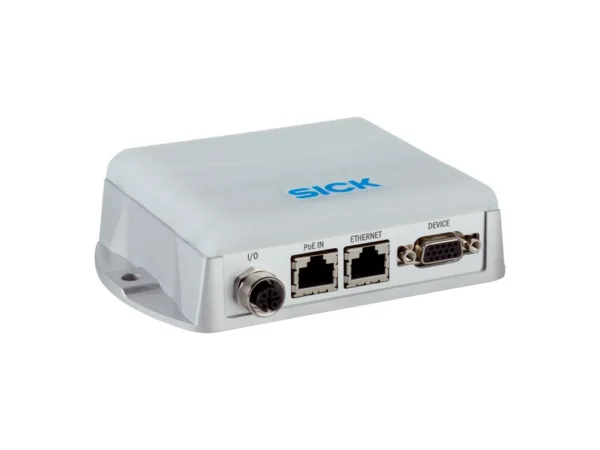

Home Diğer (Montaj / Aksesuar) CDE50-01421 CONNECTION DEVICE ETHERNET – 1111887 🔍 CDE50-01421 CONNECTION DEVICE ETHERNET – 1111887 ✉ Teklif Al Teklif Al Stok kodu: 1111887 Kategoriler: Diğer (Montaj / Aksesuar) Marka: SICK Açıklama Tecnichal data Features Brief description Connection of a SICK sensor in a Power-over-Ethernet (PoE) environment. Splitting of PoE signal into 24 volt supply voltage and Ethernet. Supported products CLV62x CLV63x CLV64x CLV65x CLV69x Lector® series RFID read/write device Mechanics/electronics Connection type 1 x “DEVICE” connection, 15-pin D-Sub HD female connector 1 x “Ethernet” connection, 8-pin RJ45 female connector 1 x “PoE IN” connection, 8-pin RJ45 female connector 1 x “I/O” connection, 5-pin M12 female connector, A-coded Supply voltage 48 V DC (42 V DC … 57 V DC) Power consumption < 4 W, If no devices are connected and without control of the signal LEDs Power output 21.5 W, Without operation of signal LEDs 19.5 W, During operation of a signal LED 17.5 W, During simultaneous operation of both signal LEDs Housing Aluminum, polypropylene Housing color Aluminum (unpainted) Enclosure rating IP20 Protection class III Weight 265 g Dimensions (L x W x H) 138 mm x 94 mm x 35 mm Interfaces Ethernet Function PoE IN: Power-over-EthernetETHERNET: Ethernet Data transmission rate 10/100 MBit/s Digital inputs 1 Digital outputs 2 Optical indicators LEDs (In cap) Ambient data Electromagnetic compatibility (EMC) IEC 61000-6-2:2016-08 / IEC 61000-6-4:2018-02 Vibration resistance EN 60068-2-6:2008-02 Ambient operating temperature –40 °C … +45 °C Storage temperature –40 °C … +70 °C Permissible relative humidity < 90 %, Non-condensing Classifications ECLASS 5.0 27242208 ECLASS 5.1.4 27242608 ECLASS 6.0 27242608 ECLASS 6.2 27242608 ECLASS 7.0 27242608 ECLASS 8.0 27242608 ECLASS 8.1 27242608 ECLASS 9.0 27242608 ECLASS 10.0 27242608 ECLASS 11.0 27242608 ECLASS 12.0 27242608 ETIM 5.0 EC001604 ETIM 6.0 EC001604 ETIM 7.0 EC001604 ETIM 8.0 EC001604 UNSPSC 16.0901 32151705 İlgili ürünler IE-SFP/1250-ED SSBX-SM1490/PLUS-LC – 808-38730AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP+-10G, TX – SFP-10GTXAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP MODULE 100BASE-FX, SM 30KM – SFP-100FX-S-30KM-TAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSLX-SM1550/PLUS-SC – 808-38224AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git
Tecnichal data Features Brief description Connection of a SICK sensor in a Power-over-Ethernet (PoE) environment. Splitting of PoE signal into 24 volt supply voltage and Ethernet. Supported products CLV62x CLV63x CLV64x CLV65x CLV69x Lector® series RFID read/write device Mechanics/electronics Connection type 1 x “DEVICE” connection, 15-pin D-Sub HD female connector 1 x “Ethernet” connection, 8-pin RJ45 female connector 1 x “PoE IN” connection, 8-pin RJ45 female connector 1 x “I/O” connection, 5-pin M12 female connector, A-coded Supply voltage 48 V DC (42 V DC … 57 V DC) Power consumption < 4 W, If no devices are connected and without control of the signal LEDs Power output 21.5 W, Without operation of signal LEDs 19.5 W, During operation of a signal LED 17.5 W, During simultaneous operation of both signal LEDs Housing Aluminum, polypropylene Housing color Aluminum (unpainted) Enclosure rating IP20 Protection class III Weight 265 g Dimensions (L x W x H) 138 mm x 94 mm x 35 mm Interfaces Ethernet Function PoE IN: Power-over-EthernetETHERNET: Ethernet Data transmission rate 10/100 MBit/s Digital inputs 1 Digital outputs 2 Optical indicators LEDs (In cap) Ambient data Electromagnetic compatibility (EMC) IEC 61000-6-2:2016-08 / IEC 61000-6-4:2018-02 Vibration resistance EN 60068-2-6:2008-02 Ambient operating temperature –40 °C … +45 °C Storage temperature –40 °C … +70 °C Permissible relative humidity < 90 %, Non-condensing Classifications ECLASS 5.0 27242208 ECLASS 5.1.4 27242608 ECLASS 6.0 27242608 ECLASS 6.2 27242608 ECLASS 7.0 27242608 ECLASS 8.0 27242608 ECLASS 8.1 27242608 ECLASS 9.0 27242608 ECLASS 10.0 27242608 ECLASS 11.0 27242608 ECLASS 12.0 27242608 ETIM 5.0 EC001604 ETIM 6.0 EC001604 ETIM 7.0 EC001604 ETIM 8.0 EC001604 UNSPSC 16.0901 32151705
