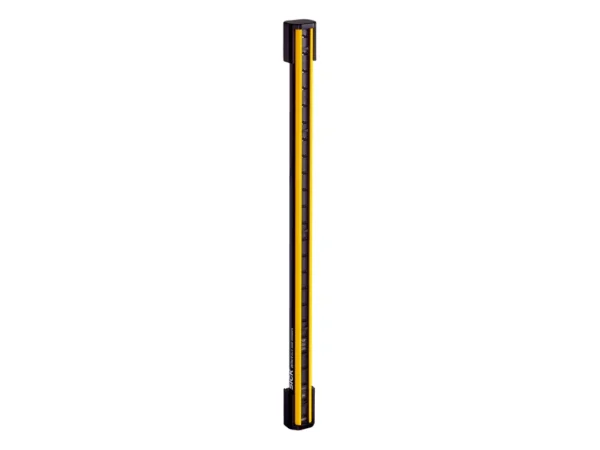

Name: SICK 1106057 | Işık Perdesi | Royal Endüstriyel
Brand: SICK
SKU: 1106057
Price: 18000.00 TRY
Availability: InStock

Tecnichal data

Features

Sub product family	deTec4 Ex II 3GD
Application	Explosive areas
Ex-approvals	ATEX for gas: II 3G Ex ec op is IIC T4 Gc ATEX for dust: II 3D Ex tc IIIC T135°C Dc
System part	Sender
Resolution	30 mm
Scanning range	30 m
Protective field height	1,200 mm
No blind zones	Yes
Synchronization	Optical synchronisation
Integrated laser alignment aid	✔
Items supplied	Sender

Safety-related parameters

Type

Type 4 (IEC 61496-1)

Safety integrity level

SIL 3 (IEC 61508)

Category

Category 4 (ISO 13849-1)

Performance level

PL e (ISO 13849-1)

PFH_D (mean probability of a dangerous failure per hour)
Single system (standalone)	15.3 x 10^-9
Cascade with one guest	30.5 x 10^-9
Cascade with two guest devices	45.6 x 10^-9

T_M (mission time)

20 years (ISO 13849-1)

Safe state in the event of a fault

At least one OSSD is in the OFF state.

Functions

Protective operation	✔
Automatic calibration of the protective field width	✔
Beam coding	✔
Cascading	✔
Smart presence detection	✔

Interfaces

System connection	Depending on system plug (M12 male connector, 5-pin or 8-pin)
Extension connection	Depending on system plug (without extension connection or with M12 female connector, 5-pin)
Configuration method	DIP switch on system plug
Display elements	LEDs

Electrical data

Mechanical data

Dimensions	See dimensional drawing
Housing material	Aluminum extruded profile

Ambient data

Enclosure rating	IP65 (IEC 60529)
Ambient operating temperature	0 °C … +55 °C
Storage temperature	–30 °C … +70 °C
Air humidity	15 % … 95 %, Non-condensing
Vibration resistance	5 g, 10 Hz … 55 Hz (IEC 60068-2-6)
Shock resistance	10 g, 16 ms (IEC 60068-2-27)

Other information

Wave length

850 nm

Type of light

Near-infrared (NIR), invisible

Integrated laser alignment aid	✔
Laser class	1
Wave length	650 nm
Type of light	Visible red light

Classifications

C4P-SX12031A00 – 1106057
