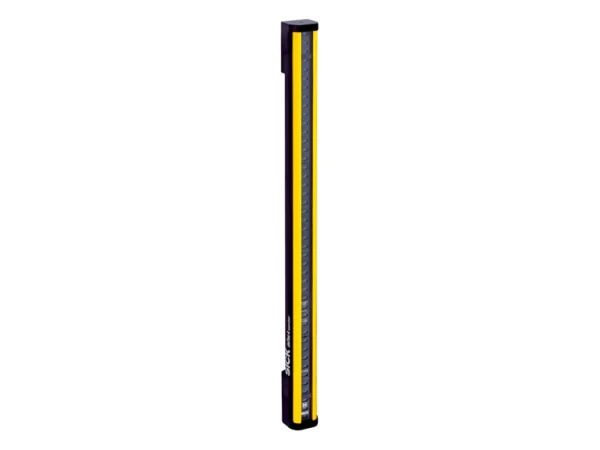

Home Işık Perdeleri C4P-SA12031A00 – 1220129 🔍 C4P-SA12031A00 – 1220129 ✉ Teklif Al Teklif Al Stok kodu: 1220129 Kategoriler: Işık Perdeleri Marka: SICK Açıklama Tecnichal data Features Sub product family deTec4 Application Normal industrial environment System part Sender Resolution 30 mm Scanning range 30 m Protective field height 1,200 mm No blind zones Yes Synchronization Optical synchronisation Integrated laser alignment aid ✔ Items supplied Sender Safety-related parameters Type Type 4 (IEC 61496-1) Safety integrity level SIL 3 (IEC 61508) Category Category 4 (ISO 13849-1) Performance level PL e (ISO 13849-1) PFHD (mean probability of a dangerous failure per hour) Single device 15.3 x 10-9 Cascade with one guest 30.5 x 10-9 Cascade with two guest devices 45.6 x 10-9 TM (mission time) 20 years (ISO 13849-1) Safe state in the event of a fault At least one OSSD is in the OFF state. Functions Protective operation ✔ Automatic calibration of the protective field width ✔ Beam coding ✔ Cascading ✔ Interfaces System connection Depending on system plug (M12 male connector, 5-pin or 8-pin) Extension connection Depending on system plug (without extension connection or with M12 female connector, 5-pin) Configuration method DIP switch on system plug Display elements LEDs Electrical data Protection class III (IEC 61140) Supply voltage VS 24 V DC (19.2 V … 28.8 V) Ripple ≤ 10 % Power consumption typical 1.68 W (DC) Mechanical data Dimensions See dimensional drawing Housing material Aluminum extruded profile Ambient data Enclosure rating IP65 (IEC 60529) IP67 (IEC 60529) Ambient operating temperature –30 °C … +55 °C Storage temperature –30 °C … +70 °C Air humidity 15 % … 95 %, Non-condensing Vibration resistance 5 g, 10 Hz … 55 Hz (IEC 60068-2-6) Shock resistance 10 g, 16 ms (IEC 60068-2-27) Other information Wave length 850 nm Type of light Near-infrared (NIR), invisible Integrated laser alignment aid ✔ Laser class 1 Wave length 650 nm Type of light Visible red light Classifications ECLASS 5.0 27272704 ECLASS 5.1.4 27272704 ECLASS 6.0 27272704 ECLASS 6.2 27272704 ECLASS 7.0 27272704 ECLASS 8.0 27272704 ECLASS 8.1 27272704 ECLASS 9.0 27272704 ECLASS 10.0 27272704 ECLASS 11.0 27272704 ECLASS 12.0 27272704 ETIM 5.0 EC002549 ETIM 6.0 EC002549 ETIM 7.0 EC002549 ETIM 8.0 EC002549 UNSPSC 16.0901 46171620 İlgili ürünler Transceiver, LineE 1500 – 30mm, Product line E, Type4/Cat.4, 30mm Hand resolution, Protective height: 1500 mm, Laser integrated, Enclosure rating IP65, GuardShield – 450L-E4HL1500YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git GuardShield LineE 1950 – 14mm Transceiver – 450L-E4FL1950YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git Corner Mirror, Glass, Range 4m, Height 600mm – 440L-AM0750600ALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git GuardShield LineE 300 – 14mm Transceiver – 450L-E4FL0300YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git
Tecnichal data Features Sub product family deTec4 Application Normal industrial environment System part Sender Resolution 30 mm Scanning range 30 m Protective field height 1,200 mm No blind zones Yes Synchronization Optical synchronisation Integrated laser alignment aid ✔ Items supplied Sender Safety-related parameters Type Type 4 (IEC 61496-1) Safety integrity level SIL 3 (IEC 61508) Category Category 4 (ISO 13849-1) Performance level PL e (ISO 13849-1) PFHD (mean probability of a dangerous failure per hour) Single device 15.3 x 10-9 Cascade with one guest 30.5 x 10-9 Cascade with two guest devices 45.6 x 10-9 TM (mission time) 20 years (ISO 13849-1) Safe state in the event of a fault At least one OSSD is in the OFF state. Functions Protective operation ✔ Automatic calibration of the protective field width ✔ Beam coding ✔ Cascading ✔ Interfaces System connection Depending on system plug (M12 male connector, 5-pin or 8-pin) Extension connection Depending on system plug (without extension connection or with M12 female connector, 5-pin) Configuration method DIP switch on system plug Display elements LEDs Electrical data Protection class III (IEC 61140) Supply voltage VS 24 V DC (19.2 V … 28.8 V) Ripple ≤ 10 % Power consumption typical 1.68 W (DC) Mechanical data Dimensions See dimensional drawing Housing material Aluminum extruded profile Ambient data Enclosure rating IP65 (IEC 60529) IP67 (IEC 60529) Ambient operating temperature –30 °C … +55 °C Storage temperature –30 °C … +70 °C Air humidity 15 % … 95 %, Non-condensing Vibration resistance 5 g, 10 Hz … 55 Hz (IEC 60068-2-6) Shock resistance 10 g, 16 ms (IEC 60068-2-27) Other information Wave length 850 nm Type of light Near-infrared (NIR), invisible Integrated laser alignment aid ✔ Laser class 1 Wave length 650 nm Type of light Visible red light Classifications ECLASS 5.0 27272704 ECLASS 5.1.4 27272704 ECLASS 6.0 27272704 ECLASS 6.2 27272704 ECLASS 7.0 27272704 ECLASS 8.0 27272704 ECLASS 8.1 27272704 ECLASS 9.0 27272704 ECLASS 10.0 27272704 ECLASS 11.0 27272704 ECLASS 12.0 27272704 ETIM 5.0 EC002549 ETIM 6.0 EC002549 ETIM 7.0 EC002549 ETIM 8.0 EC002549 UNSPSC 16.0901 46171620
