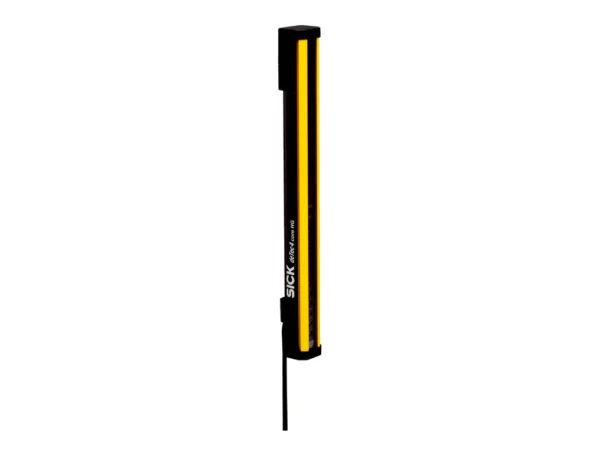

Home Işık Perdeleri C4C-EG10510A10000 – 1220381 🔍 C4C-EG10510A10000 – 1220381 ✉ Teklif Al Teklif Al Stok kodu: 1220381 Kategoriler: Işık Perdeleri Marka: SICK Açıklama Tecnichal data Features Sub product family deTec4 Core HG Application Areas where coolants, lubricants and cleaning agents are used System part Receiver Compatible sender 1220370 Resolution 14 mm Scanning range 10 m Protective field height 1,050 mm Response time 15 ms No blind zones Yes Synchronization Optical synchronisation Items supplied Receiver Test rod with diameter corresponding to the resolution of the safety light curtain Safety instruction Mounting instructions Operating instructions for download Safety-related parameters Type Type 4 (IEC 61496-1) Safety integrity level SIL 3 (IEC 61508) Category Category 4 (ISO 13849-1) Performance level PL e (ISO 13849-1) PFHD (mean probability of a dangerous failure per hour) 3.7 x 10-9 TM (mission time) 20 years (ISO 13849-1) Safe state in the event of a fault At least one OSSD is in the OFF state. Functions Protective operation ✔ Automatic calibration of the protective field width ✔ Interfaces System connection Male connector M12, 5-pin Length of cable 150 mm Cable diameter 4.3 mm Cable bend radius Stationary position > 12 x cable diameter Flexible use > 15 x cable diameter Display elements LEDs Electrical data Protection class III (IEC 61140) Supply voltage VS 24 V DC (19.2 V … 28.8 V) Ripple ≤ 10 % Power consumption typical 3.12 W (DC) Output signal switching devices (OSSDs) Type of output 2 PNP semiconductors, short-circuit protected, cross-circuit monitored ON state, switching voltage HIGH 24 V DC (VS – 2.25 V DC … VS) OFF state, switching voltage LOW ≤ 2 V DC Current-carrying capacity per OSSD ≤ 300 mA Mechanical data Dimensions See dimensional drawing Housing material Aluminum extruded profile Front screen material Chemically prestressed float glass Ambient data Enclosure rating IP65 (IEC 60529) IP67 (IEC 60529) Ambient operating temperature –30 °C … +55 °C Storage temperature –30 °C … +70 °C Air humidity 15 % … 95 %, Non-condensing Vibration resistance 5 g, 10 Hz … 55 Hz (IEC 60068-2-6) Shock resistance 10 g, 16 ms (IEC 60068-2-27) Classifications ECLASS 5.0 27272704 ECLASS 5.1.4 27272704 ECLASS 6.0 27272704 ECLASS 6.2 27272704 ECLASS 7.0 27272704 ECLASS 8.0 27272704 ECLASS 8.1 27272704 ECLASS 9.0 27272704 ECLASS 10.0 27272704 ECLASS 11.0 27272704 ECLASS 12.0 27272704 ETIM 5.0 EC002549 ETIM 6.0 EC002549 ETIM 7.0 EC002549 ETIM 8.0 EC002549 UNSPSC 16.0901 46171620 İlgili ürünler GuardShield LineE 300 – 14mm Transceiver – 450L-E4FL0300YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git GuardShield LineE 1950 – 14mm Transceiver – 450L-E4FL1950YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git Mounting brackets, Safety Light Curtain, two clamps for one stick, top and bottom mounting – 450L-AM-TBMALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git Corner Mirror, Glass, Range 4m, Height 600mm – 440L-AM0750600ALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git
Tecnichal data Features Sub product family deTec4 Core HG Application Areas where coolants, lubricants and cleaning agents are used System part Receiver Compatible sender 1220370 Resolution 14 mm Scanning range 10 m Protective field height 1,050 mm Response time 15 ms No blind zones Yes Synchronization Optical synchronisation Items supplied Receiver Test rod with diameter corresponding to the resolution of the safety light curtain Safety instruction Mounting instructions Operating instructions for download Safety-related parameters Type Type 4 (IEC 61496-1) Safety integrity level SIL 3 (IEC 61508) Category Category 4 (ISO 13849-1) Performance level PL e (ISO 13849-1) PFHD (mean probability of a dangerous failure per hour) 3.7 x 10-9 TM (mission time) 20 years (ISO 13849-1) Safe state in the event of a fault At least one OSSD is in the OFF state. Functions Protective operation ✔ Automatic calibration of the protective field width ✔ Interfaces System connection Male connector M12, 5-pin Length of cable 150 mm Cable diameter 4.3 mm Cable bend radius Stationary position > 12 x cable diameter Flexible use > 15 x cable diameter Display elements LEDs Electrical data Protection class III (IEC 61140) Supply voltage VS 24 V DC (19.2 V … 28.8 V) Ripple ≤ 10 % Power consumption typical 3.12 W (DC) Output signal switching devices (OSSDs) Type of output 2 PNP semiconductors, short-circuit protected, cross-circuit monitored ON state, switching voltage HIGH 24 V DC (VS – 2.25 V DC … VS) OFF state, switching voltage LOW ≤ 2 V DC Current-carrying capacity per OSSD ≤ 300 mA Mechanical data Dimensions See dimensional drawing Housing material Aluminum extruded profile Front screen material Chemically prestressed float glass Ambient data Enclosure rating IP65 (IEC 60529) IP67 (IEC 60529) Ambient operating temperature –30 °C … +55 °C Storage temperature –30 °C … +70 °C Air humidity 15 % … 95 %, Non-condensing Vibration resistance 5 g, 10 Hz … 55 Hz (IEC 60068-2-6) Shock resistance 10 g, 16 ms (IEC 60068-2-27) Classifications ECLASS 5.0 27272704 ECLASS 5.1.4 27272704 ECLASS 6.0 27272704 ECLASS 6.2 27272704 ECLASS 7.0 27272704 ECLASS 8.0 27272704 ECLASS 8.1 27272704 ECLASS 9.0 27272704 ECLASS 10.0 27272704 ECLASS 11.0 27272704 ECLASS 12.0 27272704 ETIM 5.0 EC002549 ETIM 6.0 EC002549 ETIM 7.0 EC002549 ETIM 8.0 EC002549 UNSPSC 16.0901 46171620
