Name: SICK 1207843 | Işık Perdesi | Royal Endüstriyel
Brand: SICK
SKU: 1207843
Price: 18000.00 TRY
Availability: InStock

Tecnichal data

Features

System part

1 Twin-Stick

Usage

miniTwin2 as a standalone device

miniTwin2 as last guest for 2- or 3-device cascade

Mounting system type

C-fix or L-fix bracket

Resolution

24 mm

Scanning range
Minimum	0 m … 6 m
Typical	0 m … 8 m

Protective field height

1,020 mm

Response time

≤ 13 ms

Synchronization

Optical, without separate synchronization

Items supplied

Twin stick

System plug

C-Fix bracket and L-Fix bracket, 2 pieces each

Test rod with diameter corresponding to the resolution of the safety light curtain

Safety instruction

Mounting instructions

Operating instructions for download

Safety-related parameters

Type	Type 2 (IEC 61496-1)
Safety integrity level	SIL 1 (IEC 61508)
Category	Category 2 (EN ISO 13849)
Test rate (internal test)	58 /s
Maximum demand rate	≤ 34 min⁻¹ (EN ISO 13849)
Performance level	PL c (EN ISO 13849), Pay attention to optical characteristics!
PFH_D (mean probability of a dangerous failure per hour)	Standalone system: 2.4 x 10^-8 (EN ISO 13849)
T_M (mission time)	20 years (EN ISO 13849)
Safe state in the event of a fault	At least one OSSD is in the OFF state.

Functions

	Functions	Delivery status
Restart interlock	✔	Deactivated
External device monitoring (EDM)	✔	Deactivated
Beam coding	Automatic

Interfaces

System connection	Male connector M12, 5-pin
Length of cable	700 mm
Conductor cross section	0.34 mm²
Permitted cable length	≤ 20 m

Configuration method

Hard wired

Display elements

LEDs

Electrical data

Protection class

III (EN 61140)

Supply voltage V_S

24 V DC (19.2 V DC … 28.8 V DC)

Ripple

≤ 10 %

Power consumption

≤ 3 A

Output signal switching devices (OSSDs)
Type of output	PNP semiconductors, short-circuit protected, cross-circuit monitored
ON state, switching voltage HIGH	24 V DC (V_S – 2.25 V DC … V_S)
OFF state, switching voltage LOW	≤ 2 V DC
Current-carrying capacity per OSSD	≤ 300 mA

Mechanical data

Housing cross-section (incl. system connection)	15 mm x 32 mm
Housing material	Aluminum alloy ALMGSI 0.5
Weight	360 g

Ambient data

Enclosure rating	IP65 (EN 60529)
Ambient operating temperature	–20 °C … +55 °C
Storage temperature	–25 °C … +70 °C
Air humidity	15 % … 95 %, Non-condensing
Vibration resistance	5 g, 10 Hz … 55 Hz (EN 60068-2-6)
Shock resistance	10 g, 16 ms (EN 60068-2-27)

Other information

Wave length

850 nm

Classifications

ECLASS 5.0	27272704
ECLASS 5.1.4	27272704
ECLASS 6.0	27272704
ECLASS 6.2	27272704
ECLASS 7.0	27272704
ECLASS 8.0	27272704
ECLASS 8.1	27272704
ECLASS 9.0	27272704
ECLASS 10.0	27272704
ECLASS 11.0	27272704
ECLASS 12.0	27272704
ETIM 5.0	EC002549
ETIM 6.0	EC002549
ETIM 7.0	EC002549
ETIM 8.0	EC002549
UNSPSC 16.0901	46171620

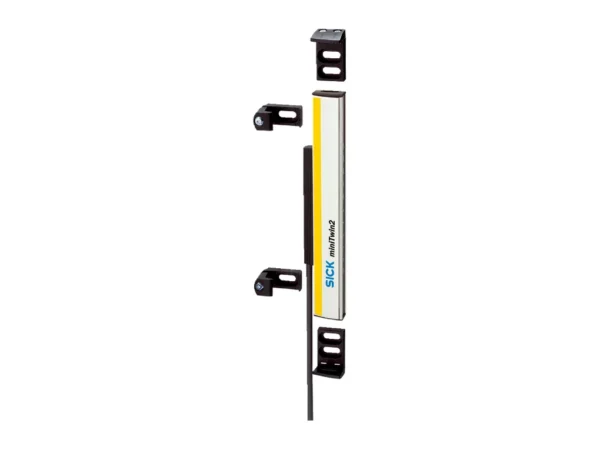

C2MT-10224BBC03FE0 – 1207843
