Name: SICK 1213197 | Işık Perdesi | Royal Endüstriyel
Brand: SICK
SKU: 1213197
Price: 18000.00 TRY
Availability: InStock

Tecnichal data

Features

Sub product family	deTec2 Core
Application	Normal industrial environment
System part	Sender
Compatible receiver	1213198
Resolution	14 mm
Scanning range	10 m
Protective field height	1,050 mm
No blind zones	Yes
Synchronization	Optical synchronisation
Items supplied	Sender

Safety-related parameters

Type	Type 2 (IEC 61496-1)
Safety integrity level	SIL 1 (IEC 61508)
Category	Category 2 (ISO 13849-1)
Performance level	PL c (ISO 13849-1)
PFH_D (mean probability of a dangerous failure per hour)	31 x 10^-9
T_M (mission time)	20 years (ISO 13849-1)
Safe state in the event of a fault	At least one OSSD is in the OFF state.

Functions

Protective operation	✔
Automatic calibration of the protective field width	✔

Interfaces

Display elements

LEDs

Electrical data

Mechanical data

Dimensions	See dimensional drawing
Housing material	Aluminum extruded profile

Ambient data

Enclosure rating	IP65 (IEC 60529) IP67 (IEC 60529)
Ambient operating temperature	–30 °C … +55 °C
Storage temperature	–30 °C … +70 °C
Air humidity	15 % … 95 %, Non-condensing
Vibration resistance	5 g, 10 Hz … 55 Hz (IEC 60068-2-6)
Shock resistance	10 g, 16 ms (IEC 60068-2-27)

Other information

Wave length	850 nm
Type of light	Near-infrared (NIR), invisible

Classifications

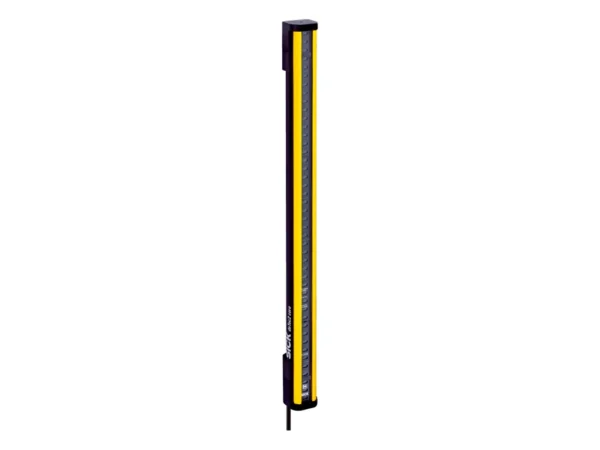

C2C-SA10510A10000 – 1213197
