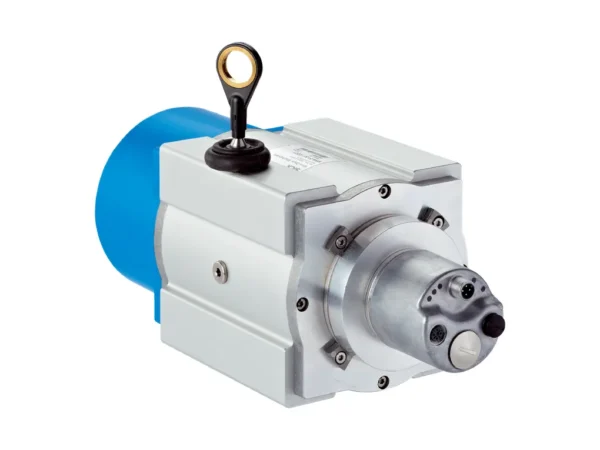

Home Enkoderler BTF13-I1BM1599 – 1105976 🔍 BTF13-I1BM1599 – 1105976 ✉ Teklif Al Teklif Al Stok kodu: 1105976 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Measurement range 0 m … 15 m Encoder Absolute encoders Resolution (wire draw + encoder) 0.001 mm Repeatability ≤ 1.5 mm Linearity ≤ ± 2 mm Hysteresis ≤ 5 mm Interfaces Communication interface EtherNet/IP™ Programmable/configurable ✔ Electrical data Connection type Male connector, Female connector, 1x, 2x, M12, M12, 4-pin, 4-pin, axial, axial Supply voltage 10 V DC … 30 V DC Power consumption ≤ 3 W (without load) MTTFd: mean time to dangerous failure 80 years (EN ISO 13849-1) Mechanical data Weight 3.7 kg Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A Measuring wire diameter 1.35 mm Weight (measuring wire) 7.1 g/m Housing material, wire draw mechanism Aluminum (anodised), plastic Spring return force 10 N … 20 N Length of wire pulled out per revolution 327.7 mm Life of wire draw mechanism Typ. 1,000,000 cycles Actual wire draw length 15.2 m Operating speed 4 m/s Mounted encoder AFM60 EtherNet/IP, AFM60A-S1IB018X12, 1055331 Mounted mechanic MRA-F130-115D2, 6072738 Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP64, mounted mechanic IP67, Encoder (IEC 60529) Encoder Operating temperature range –30 °C … +70 °C Classifications ECLASS 5.0 27270590 ECLASS 5.1.4 27270590 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270590 ECLASS 8.0 27270590 ECLASS 8.1 27270590 ECLASS 9.0 27270590 ECLASS 10.0 27270613 ECLASS 11.0 27270503 ECLASS 12.0 27270503 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 1746-HSCEALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 847T-DN2A-RG03000ALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 847T-DN1A-RG02000ALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP1BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Measurement range 0 m … 15 m Encoder Absolute encoders Resolution (wire draw + encoder) 0.001 mm Repeatability ≤ 1.5 mm Linearity ≤ ± 2 mm Hysteresis ≤ 5 mm Interfaces Communication interface EtherNet/IP™ Programmable/configurable ✔ Electrical data Connection type Male connector, Female connector, 1x, 2x, M12, M12, 4-pin, 4-pin, axial, axial Supply voltage 10 V DC … 30 V DC Power consumption ≤ 3 W (without load) MTTFd: mean time to dangerous failure 80 years (EN ISO 13849-1) Mechanical data Weight 3.7 kg Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A Measuring wire diameter 1.35 mm Weight (measuring wire) 7.1 g/m Housing material, wire draw mechanism Aluminum (anodised), plastic Spring return force 10 N … 20 N Length of wire pulled out per revolution 327.7 mm Life of wire draw mechanism Typ. 1,000,000 cycles Actual wire draw length 15.2 m Operating speed 4 m/s Mounted encoder AFM60 EtherNet/IP, AFM60A-S1IB018X12, 1055331 Mounted mechanic MRA-F130-115D2, 6072738 Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP64, mounted mechanic IP67, Encoder (IEC 60529) Encoder Operating temperature range –30 °C … +70 °C Classifications ECLASS 5.0 27270590 ECLASS 5.1.4 27270590 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270590 ECLASS 8.0 27270590 ECLASS 8.1 27270590 ECLASS 9.0 27270590 ECLASS 10.0 27270613 ECLASS 11.0 27270503 ECLASS 12.0 27270503 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
