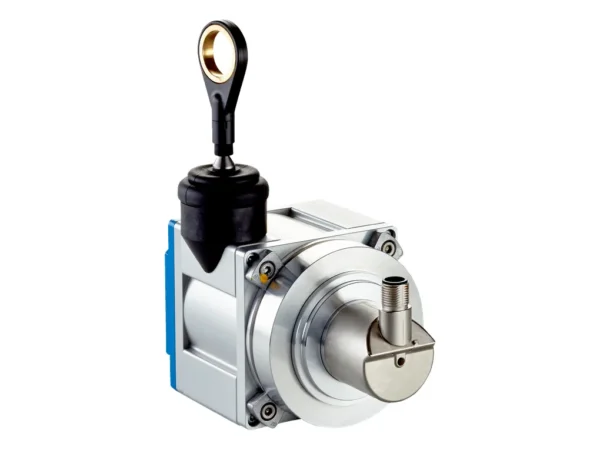

Home Enkoderler BTF08-Q1RM0261 – 1097307 🔍 BTF08-Q1RM0261 – 1097307 ✉ Teklif Al Teklif Al Stok kodu: 1097307 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Measurement range 0 m … 2 m Encoder Absolute encoders Resolution (wire draw + encoder) 0.05 mm Repeatability ≤ 1 mm Linearity ≤ ± 2 mm Hysteresis ≤ 2 mm Interfaces Communication interface IO-Link / IO-Link V1.1 / COM3 (230,4 kBaud) Programmable/configurable ✔ Electrical data Connection type Male connector, M12, 4-pin, universal Supply voltage 18 V … 30 V Power consumption ≤ 1.5 W (without load) MTTFd: mean time to dangerous failure 240 years (EN ISO 13849-1) Mechanical data Weight 1.42 kg Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A Measuring wire diameter 1.35 mm Weight (measuring wire) 7.1 g/m Housing material, wire draw mechanism Aluminum (anodized), aluminum die cast (nickel-plated) Spring return force 6 N … 14 N Length of wire pulled out per revolution 200 mm Life of wire draw mechanism Typ. 1,000,000 cycles Actual wire draw length 2.2 m Wire acceleration 40 m/s² Operating speed 8 m/s Mounted encoder AHM36 IO-Link Basic, AHM36B-S3QC012X12, 1092014 Mounted mechanic MRA-F080-102D2, 6028625 Ambient data EMC According to EN 61000-6-2, EN 61000-6-3 and EN 61131-9 Enclosure rating IP64, mounted mechanic IP65, Encoder (IEC 60529) Operating temperature range –20 °C … +70 °C Classifications ECLASS 5.0 27270590 ECLASS 5.1.4 27270590 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270590 ECLASS 8.0 27270590 ECLASS 8.1 27270590 ECLASS 9.0 27270590 ECLASS 10.0 27270613 ECLASS 11.0 27270503 ECLASS 12.0 27270503 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 842E-CM-MIP14BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 847T-DN2A-RG03000ALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP13BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP10BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Measurement range 0 m … 2 m Encoder Absolute encoders Resolution (wire draw + encoder) 0.05 mm Repeatability ≤ 1 mm Linearity ≤ ± 2 mm Hysteresis ≤ 2 mm Interfaces Communication interface IO-Link / IO-Link V1.1 / COM3 (230,4 kBaud) Programmable/configurable ✔ Electrical data Connection type Male connector, M12, 4-pin, universal Supply voltage 18 V … 30 V Power consumption ≤ 1.5 W (without load) MTTFd: mean time to dangerous failure 240 years (EN ISO 13849-1) Mechanical data Weight 1.42 kg Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A Measuring wire diameter 1.35 mm Weight (measuring wire) 7.1 g/m Housing material, wire draw mechanism Aluminum (anodized), aluminum die cast (nickel-plated) Spring return force 6 N … 14 N Length of wire pulled out per revolution 200 mm Life of wire draw mechanism Typ. 1,000,000 cycles Actual wire draw length 2.2 m Wire acceleration 40 m/s² Operating speed 8 m/s Mounted encoder AHM36 IO-Link Basic, AHM36B-S3QC012X12, 1092014 Mounted mechanic MRA-F080-102D2, 6028625 Ambient data EMC According to EN 61000-6-2, EN 61000-6-3 and EN 61131-9 Enclosure rating IP64, mounted mechanic IP65, Encoder (IEC 60529) Operating temperature range –20 °C … +70 °C Classifications ECLASS 5.0 27270590 ECLASS 5.1.4 27270590 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270590 ECLASS 8.0 27270590 ECLASS 8.1 27270590 ECLASS 9.0 27270590 ECLASS 10.0 27270613 ECLASS 11.0 27270503 ECLASS 12.0 27270503 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
