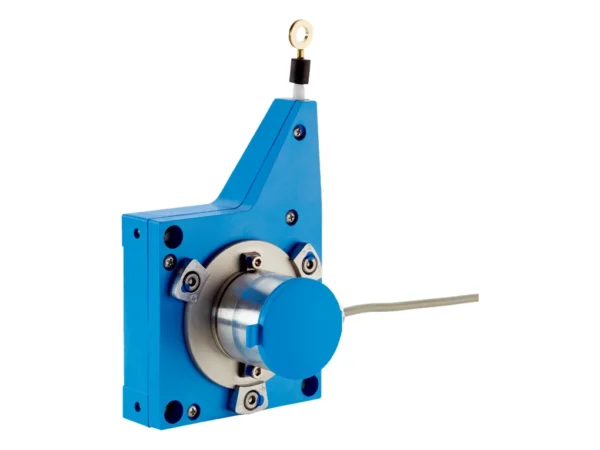

Home Enkoderler BCG08-L1KM03PP – 6039748 🔍 BCG08-L1KM03PP – 6039748 ✉ Teklif Al Teklif Al Stok kodu: 6039748 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Measurement range 0 m … 3 m Encoder Absolute encoders Resolution (wire draw + encoder) 0.06 mm Repeatability ≤ 0.2 mm Linearity ≤ ± 2 mm Hysteresis ≤ 0.4 mm Interfaces Communication interface Analog / Voltage / 0…10 V Electrical data Connection type Cable, radial, 1.5 m Supply voltage 19 V DC … 33 V DC Operating current ≤ 80 mA MTTFd: mean time to dangerous failure 850 years (EN ISO 13849-1) Mechanical data Weight 0.35 kg Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A Measuring wire diameter 0.55 mm Weight (measuring wire) 1.2 g/m Housing material, wire draw mechanism Plastic, Noryl Spring return force 3.3 N … 4.4 N Length of wire pulled out per revolution 230 mm Life of wire draw mechanism Typ. 1,000,000 cycles Actual wire draw length 3.2 m Wire acceleration 10 m/s² Operating speed 6 m/s Mounted encoder ACM36, ACM36-L1K0-K01, 6039752 Mounted mechanic MRA-G080-103D3, 5322778 Ambient data EMC According to EN 61000-6-2 and EN 61000-6-4 Enclosure rating IP50, mounted mechanic IP65, Encoder Operating temperature range –30 °C … +70 °C Classifications ECLASS 5.0 27270590 ECLASS 5.1.4 27270590 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270590 ECLASS 8.0 27270590 ECLASS 8.1 27270590 ECLASS 9.0 27270590 ECLASS 10.0 27270613 ECLASS 11.0 27270503 ECLASS 12.0 27270503 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 842E-CM-MIP3BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP10BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP4BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP14BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Measurement range 0 m … 3 m Encoder Absolute encoders Resolution (wire draw + encoder) 0.06 mm Repeatability ≤ 0.2 mm Linearity ≤ ± 2 mm Hysteresis ≤ 0.4 mm Interfaces Communication interface Analog / Voltage / 0…10 V Electrical data Connection type Cable, radial, 1.5 m Supply voltage 19 V DC … 33 V DC Operating current ≤ 80 mA MTTFd: mean time to dangerous failure 850 years (EN ISO 13849-1) Mechanical data Weight 0.35 kg Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A Measuring wire diameter 0.55 mm Weight (measuring wire) 1.2 g/m Housing material, wire draw mechanism Plastic, Noryl Spring return force 3.3 N … 4.4 N Length of wire pulled out per revolution 230 mm Life of wire draw mechanism Typ. 1,000,000 cycles Actual wire draw length 3.2 m Wire acceleration 10 m/s² Operating speed 6 m/s Mounted encoder ACM36, ACM36-L1K0-K01, 6039752 Mounted mechanic MRA-G080-103D3, 5322778 Ambient data EMC According to EN 61000-6-2 and EN 61000-6-4 Enclosure rating IP50, mounted mechanic IP65, Encoder Operating temperature range –30 °C … +70 °C Classifications ECLASS 5.0 27270590 ECLASS 5.1.4 27270590 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270590 ECLASS 8.0 27270590 ECLASS 8.1 27270590 ECLASS 9.0 27270590 ECLASS 10.0 27270613 ECLASS 11.0 27270503 ECLASS 12.0 27270503 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
