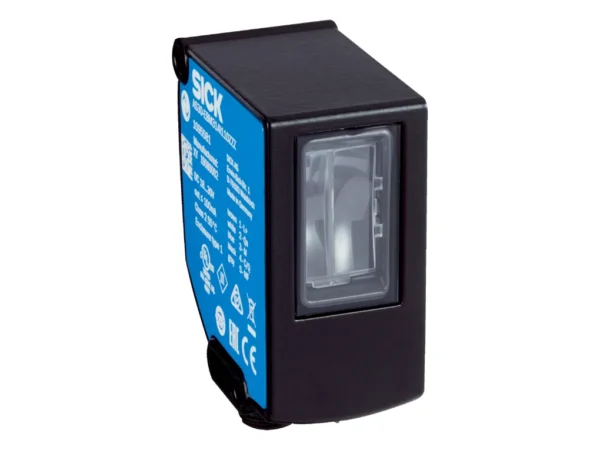

Home Alan Tarayıcılar (LiDAR) AS30-PBM314I110ZZZ000C000ZZZ – 1095583 🔍 AS30-PBM314I110ZZZ000C000ZZZ – 1095583 ✉ Teklif Al Teklif Al Stok kodu: 1095583 Kategoriler: Alan Tarayıcılar (LiDAR) Marka: SICK Açıklama Tecnichal data Features Sensor principle Proximity system Functional principle Web guiding, positioning Principle of operation (default) Positioning Dimensions (W x H x D) 31 mm x 62 mm x 52.2 mm Sensing distance ≤ 25 mm Housing design Rectangular Working range 20 mm … 30 mm Measurement range 30 mm Minimum detectable object (MDO) 0.2 mm Light source LED, White Wave length 400 nm … 700 nm Light spot size 39 mm x 12.2 mm Repeatability 0.2 mm Linearity (position value) ± 2 % Resolution 0.1 mm Adjustment IO-Link, Display Teach-in mode Edge detection Area detection Mechanics/electronics Supply voltage 18 V … 30 V Ripple ≤ 5 V Current consumption < 3.1 W Switching frequency 500 Hz Switching output Push-pull: PNP/NPN Switching output (voltage) Push-pull: PNP/NPN HIGH = UV – 3 V/LOW ≤ 3 V Analog output 4 mA … 20 mA Resolution of analog output 12 bit Output rate of analog output 1 ms Output current Imax. < 100 mA Initialization time 0.48 s Connection type Male connector M12, 5-pin Protection class III Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP67 Weight 250 g Housing material Metal, zinc diecast Optics material Glass Communication interface IO-Link ✔ VendorID 26 DeviceID HEX 0x800207 DeviceID DEC 8389127 Cycle time > 1.1 ms Ambient data Ambient operating temperature –10 °C … +55 °C Ambient temperature, storage –25 °C … +75 °C Shock load According to IEC 60068 UL File No. NRKH.E181493 & NRKH7.E181493 Classifications ECLASS 5.0 27270906 ECLASS 5.1.4 27270906 ECLASS 6.0 27270906 ECLASS 6.2 27270906 ECLASS 7.0 27270906 ECLASS 8.0 27270906 ECLASS 8.1 27270906 ECLASS 9.0 27270906 ECLASS 10.0 27270906 ECLASS 11.0 27270906 ECLASS 12.0 27270906 ETIM 5.0 EC001820 ETIM 6.0 EC001820 ETIM 7.0 EC001820 ETIM 8.0 EC001820 UNSPSC 16.0901 39121528 İlgili ürünler TIM781-2174101 – 1096807SICKAlan Tarayıcılar (LiDAR) ₺55.000,00 Ürüne Git TIM351-2134001S02 – 1080181SICKAlan Tarayıcılar (LiDAR) ₺55.000,00 Ürüne Git TIM361-2134101S02 – 1080182SICKAlan Tarayıcılar (LiDAR) ₺55.000,00 Ürüne Git AS30-WBM314I220A00000C000ZZZ – 1095579SICKAlan Tarayıcılar (LiDAR) ₺55.000,00 Ürüne Git
Tecnichal data Features Sensor principle Proximity system Functional principle Web guiding, positioning Principle of operation (default) Positioning Dimensions (W x H x D) 31 mm x 62 mm x 52.2 mm Sensing distance ≤ 25 mm Housing design Rectangular Working range 20 mm … 30 mm Measurement range 30 mm Minimum detectable object (MDO) 0.2 mm Light source LED, White Wave length 400 nm … 700 nm Light spot size 39 mm x 12.2 mm Repeatability 0.2 mm Linearity (position value) ± 2 % Resolution 0.1 mm Adjustment IO-Link, Display Teach-in mode Edge detection Area detection Mechanics/electronics Supply voltage 18 V … 30 V Ripple ≤ 5 V Current consumption < 3.1 W Switching frequency 500 Hz Switching output Push-pull: PNP/NPN Switching output (voltage) Push-pull: PNP/NPN HIGH = UV – 3 V/LOW ≤ 3 V Analog output 4 mA … 20 mA Resolution of analog output 12 bit Output rate of analog output 1 ms Output current Imax. < 100 mA Initialization time 0.48 s Connection type Male connector M12, 5-pin Protection class III Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP67 Weight 250 g Housing material Metal, zinc diecast Optics material Glass Communication interface IO-Link ✔ VendorID 26 DeviceID HEX 0x800207 DeviceID DEC 8389127 Cycle time > 1.1 ms Ambient data Ambient operating temperature –10 °C … +55 °C Ambient temperature, storage –25 °C … +75 °C Shock load According to IEC 60068 UL File No. NRKH.E181493 & NRKH7.E181493 Classifications ECLASS 5.0 27270906 ECLASS 5.1.4 27270906 ECLASS 6.0 27270906 ECLASS 6.2 27270906 ECLASS 7.0 27270906 ECLASS 8.0 27270906 ECLASS 8.1 27270906 ECLASS 9.0 27270906 ECLASS 10.0 27270906 ECLASS 11.0 27270906 ECLASS 12.0 27270906 ETIM 5.0 EC001820 ETIM 6.0 EC001820 ETIM 7.0 EC001820 ETIM 8.0 EC001820 UNSPSC 16.0901 39121528
