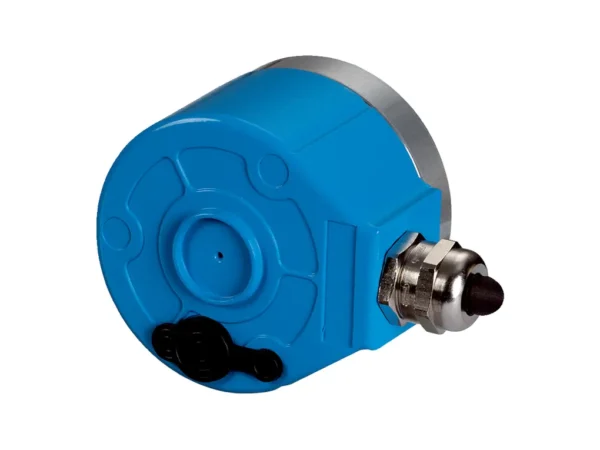

Home Enkoderler ARS60-H4M16384 – 1209471 🔍 ARS60-H4M16384 – 1209471 ✉ Teklif Al Teklif Al Stok kodu: 1209471 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Number of steps per revolution (max. resolution) 16,384 (14 bit) Measuring step 360° /number of steps Measuring step deviation 0.005° binary number of steps 0.016° non-binary number of steps Error limits G 0.035° (binary number of steps) 0.046° (non-binary number of steps) Repeatability standard deviation σr 0.005° Interfaces Communication interface Parallel data world Initialization time 80 ms Code type Binary Code sequence parameter adjustable CW (clockwise) increasing when viewing the clockwise rotating shaft Measured value backlash 0.005° Response threshold 0.003° Electrical data Connection type Cable, 22-wire, radial, 5 m Supply voltage 10 … 32 V Operating current Typ. 90 mA MTTFd: mean time to dangerous failure 300 years (EN ISO 13849-1) Switching level of control inputs Logic H = 0.7 x US, Logic L = 0 V … 0.3 x US Actuation of set button ≥ 100 ms Mechanical data Mechanical design Solid shaft, face mount flange Shaft diameter 10 mm Shaft length 19 mm Weight Approx. 0.3 kg Housing material Aluminum die cast Start up torque Typ. 0.4 Ncm Operating torque Typ. 0.3 Ncm Permissible shaft loading 20 N (radial) 10 N (axial) Operating speed ≤ 6,000 min⁻¹ with shaft seal ≤ 10,000 min⁻¹ without shaft seal Moment of inertia of the rotor 54 gcm² Bearing lifetime 3.6 x 109 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP65, male connector (IEC 60529) IP66, cable (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –20 °C … +85 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 50 g, 11 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications ECLASS 5.0 27270502 ECLASS 5.1.4 27270502 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270502 ECLASS 8.0 27270502 ECLASS 8.1 27270502 ECLASS 9.0 27270502 ECLASS 10.0 27270502 ECLASS 11.0 27270502 ECLASS 12.0 27270502 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 847T-DN2C-RF00100ALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP5BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP13BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP10BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Number of steps per revolution (max. resolution) 16,384 (14 bit) Measuring step 360° /number of steps Measuring step deviation 0.005° binary number of steps 0.016° non-binary number of steps Error limits G 0.035° (binary number of steps) 0.046° (non-binary number of steps) Repeatability standard deviation σr 0.005° Interfaces Communication interface Parallel data world Initialization time 80 ms Code type Binary Code sequence parameter adjustable CW (clockwise) increasing when viewing the clockwise rotating shaft Measured value backlash 0.005° Response threshold 0.003° Electrical data Connection type Cable, 22-wire, radial, 5 m Supply voltage 10 … 32 V Operating current Typ. 90 mA MTTFd: mean time to dangerous failure 300 years (EN ISO 13849-1) Switching level of control inputs Logic H = 0.7 x US, Logic L = 0 V … 0.3 x US Actuation of set button ≥ 100 ms Mechanical data Mechanical design Solid shaft, face mount flange Shaft diameter 10 mm Shaft length 19 mm Weight Approx. 0.3 kg Housing material Aluminum die cast Start up torque Typ. 0.4 Ncm Operating torque Typ. 0.3 Ncm Permissible shaft loading 20 N (radial) 10 N (axial) Operating speed ≤ 6,000 min⁻¹ with shaft seal ≤ 10,000 min⁻¹ without shaft seal Moment of inertia of the rotor 54 gcm² Bearing lifetime 3.6 x 109 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP65, male connector (IEC 60529) IP66, cable (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –20 °C … +85 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 50 g, 11 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications ECLASS 5.0 27270502 ECLASS 5.1.4 27270502 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270502 ECLASS 8.0 27270502 ECLASS 8.1 27270502 ECLASS 9.0 27270502 ECLASS 10.0 27270502 ECLASS 11.0 27270502 ECLASS 12.0 27270502 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
