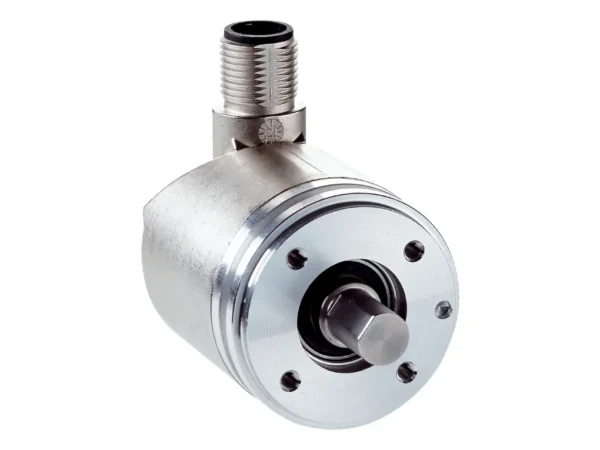

Home Enkoderler AHS36A-S2PC016384 – 1100140 🔍 AHS36A-S2PC016384 – 1100140 ✉ Teklif Al Teklif Al Stok kodu: 1100140 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Number of steps per revolution (max. resolution) 16,384 (14 bit) Error limits G 0.35° (at 20 °C) Repeatability standard deviation σr 0.2° (at 20 °C) Interfaces Communication interface SSI Initialization time 100 ms Position forming time 125 µs Process data Position Parameterising data Number of steps per revolution PRESET Counting direction Code type Offset of position bits Position error bit SSI mode Code type Gray, binary Code sequence parameter adjustable CW/CCW (V/R̅) configurable via programming tool or cable Clock frequency 2 MHz Set (electronic adjustment) H-active (L = 0 – 3 V, H = 4,0 – Us V) CW/CCW (counting sequence when turning) L-active (L = 0 – 1 V, H = 2,0 – Us V) Electrical data Connection type Male connector, M12, 8-pin, universal Supply voltage 4.5 … 32 V DC Power consumption ≤ 1.5 W (without load) Reverse polarity protection ✔ MTTFd: mean time to dangerous failure 230 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, Servo flange Shaft diameter 10 mm Shaft length 12 mm Weight 0.12 kg Shaft material Stainless steel Flange material Aluminum Housing material Zinc Start up torque 1 Ncm (+20 °C) Operating torque < 1 Ncm (+20 °C) Permissible shaft loading 40 N (radial) 20 N (axial) Operating speed ≤ 6,000 min⁻¹ Moment of inertia of the rotor 2.5 gcm² Bearing lifetime 3.6 x 10^8 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP66 (IEC 60529) IP67 (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –40 °C … +100 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications ECLASS 5.0 27270502 ECLASS 5.1.4 27270502 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270502 ECLASS 8.0 27270502 ECLASS 8.1 27270502 ECLASS 9.0 27270502 ECLASS 10.0 27270502 ECLASS 11.0 27270502 ECLASS 12.0 27270502 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 847T-DN2C-RF00100ALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP14BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 1734-IJALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP5BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Number of steps per revolution (max. resolution) 16,384 (14 bit) Error limits G 0.35° (at 20 °C) Repeatability standard deviation σr 0.2° (at 20 °C) Interfaces Communication interface SSI Initialization time 100 ms Position forming time 125 µs Process data Position Parameterising data Number of steps per revolution PRESET Counting direction Code type Offset of position bits Position error bit SSI mode Code type Gray, binary Code sequence parameter adjustable CW/CCW (V/R̅) configurable via programming tool or cable Clock frequency 2 MHz Set (electronic adjustment) H-active (L = 0 – 3 V, H = 4,0 – Us V) CW/CCW (counting sequence when turning) L-active (L = 0 – 1 V, H = 2,0 – Us V) Electrical data Connection type Male connector, M12, 8-pin, universal Supply voltage 4.5 … 32 V DC Power consumption ≤ 1.5 W (without load) Reverse polarity protection ✔ MTTFd: mean time to dangerous failure 230 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, Servo flange Shaft diameter 10 mm Shaft length 12 mm Weight 0.12 kg Shaft material Stainless steel Flange material Aluminum Housing material Zinc Start up torque 1 Ncm (+20 °C) Operating torque < 1 Ncm (+20 °C) Permissible shaft loading 40 N (radial) 20 N (axial) Operating speed ≤ 6,000 min⁻¹ Moment of inertia of the rotor 2.5 gcm² Bearing lifetime 3.6 x 10^8 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP66 (IEC 60529) IP67 (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –40 °C … +100 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications ECLASS 5.0 27270502 ECLASS 5.1.4 27270502 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270502 ECLASS 8.0 27270502 ECLASS 8.1 27270502 ECLASS 9.0 27270502 ECLASS 10.0 27270502 ECLASS 11.0 27270502 ECLASS 12.0 27270502 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
