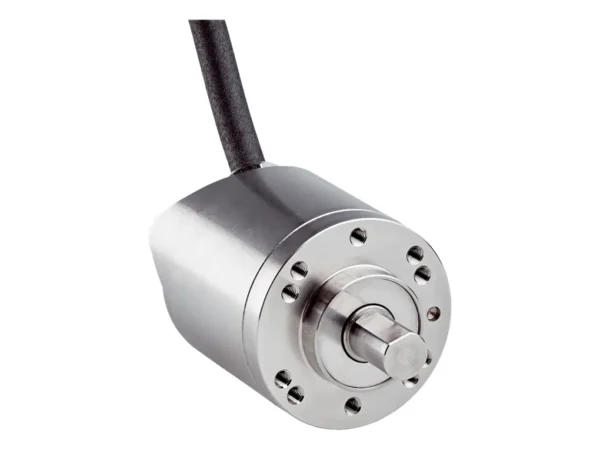

Home Enkoderler AHM36I-S3PJ014X12 – 1099378 🔍 AHM36I-S3PJ014X12 – 1099378 ✉ Teklif Al Teklif Al Stok kodu: 1099378 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Number of steps per revolution (max. resolution) 16,384 (14 bit) Number of revolutions 4,096 (12 bit) Max. resolution (number of steps per revolution x number of revolutions) 14 bit x 12 bit (16,384 x 4,096) Error limits G 0.35° (at 20 °C) Repeatability standard deviation σr 0.2° (at 20 °C) Interfaces Communication interface SSI Initialization time 100 ms Position forming time 125 µs Process data Position Parameterising data Number of steps per revolution Number of revolutions PRESET Counting direction Code type Offset of position bits Position error bit Round axis functionality SSI mode Code type Gray, binary Code sequence parameter adjustable CW/CCW (V/R̅) configurable via programming tool or cable Clock frequency 2 MHz Set (electronic adjustment) H-active (L = 0 – 3 V, H = 4,0 – Us V) CW/CCW (counting sequence when turning) L-active (L = 0 – 1 V, H = 2,0 – Us V) Electrical data Connection type Cable, 8-wire, universal, 0.5 m Supply voltage 4.5 … 32 V DC Power consumption ≤ 1.5 W (without load) Reverse polarity protection ✔ MTTFd: mean time to dangerous failure 230 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, face mount flange Shaft diameter 6 mm Shaft length 12 mm Weight 0.2 kg Shaft material Stainless steel 1,4305 Flange material Stainless steel 1,4305 Housing material Stainless steel 1,4305 Material, cable PUR Start up torque 1 Ncm (+20 °C) Operating torque < 1 Ncm (+20 °C) Permissible shaft loading 40 N (radial) 20 N (axial) Operating speed ≤ 6,000 min⁻¹ Moment of inertia of the rotor 2.5 gcm² Bearing lifetime 3.6 x 10^8 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP67 (IEC 60529) IP69K (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –40 °C … +100 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications ECLASS 5.0 27270502 ECLASS 5.1.4 27270502 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270502 ECLASS 8.0 27270502 ECLASS 8.1 27270502 ECLASS 9.0 27270502 ECLASS 10.0 27270502 ECLASS 11.0 27270502 ECLASS 12.0 27270502 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 842E-CM-MIP14BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP2BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP6BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 847T-DN2C-RF00100ALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Number of steps per revolution (max. resolution) 16,384 (14 bit) Number of revolutions 4,096 (12 bit) Max. resolution (number of steps per revolution x number of revolutions) 14 bit x 12 bit (16,384 x 4,096) Error limits G 0.35° (at 20 °C) Repeatability standard deviation σr 0.2° (at 20 °C) Interfaces Communication interface SSI Initialization time 100 ms Position forming time 125 µs Process data Position Parameterising data Number of steps per revolution Number of revolutions PRESET Counting direction Code type Offset of position bits Position error bit Round axis functionality SSI mode Code type Gray, binary Code sequence parameter adjustable CW/CCW (V/R̅) configurable via programming tool or cable Clock frequency 2 MHz Set (electronic adjustment) H-active (L = 0 – 3 V, H = 4,0 – Us V) CW/CCW (counting sequence when turning) L-active (L = 0 – 1 V, H = 2,0 – Us V) Electrical data Connection type Cable, 8-wire, universal, 0.5 m Supply voltage 4.5 … 32 V DC Power consumption ≤ 1.5 W (without load) Reverse polarity protection ✔ MTTFd: mean time to dangerous failure 230 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, face mount flange Shaft diameter 6 mm Shaft length 12 mm Weight 0.2 kg Shaft material Stainless steel 1,4305 Flange material Stainless steel 1,4305 Housing material Stainless steel 1,4305 Material, cable PUR Start up torque 1 Ncm (+20 °C) Operating torque < 1 Ncm (+20 °C) Permissible shaft loading 40 N (radial) 20 N (axial) Operating speed ≤ 6,000 min⁻¹ Moment of inertia of the rotor 2.5 gcm² Bearing lifetime 3.6 x 10^8 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP67 (IEC 60529) IP69K (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –40 °C … +100 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications ECLASS 5.0 27270502 ECLASS 5.1.4 27270502 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270502 ECLASS 8.0 27270502 ECLASS 8.1 27270502 ECLASS 9.0 27270502 ECLASS 10.0 27270502 ECLASS 11.0 27270502 ECLASS 12.0 27270502 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
