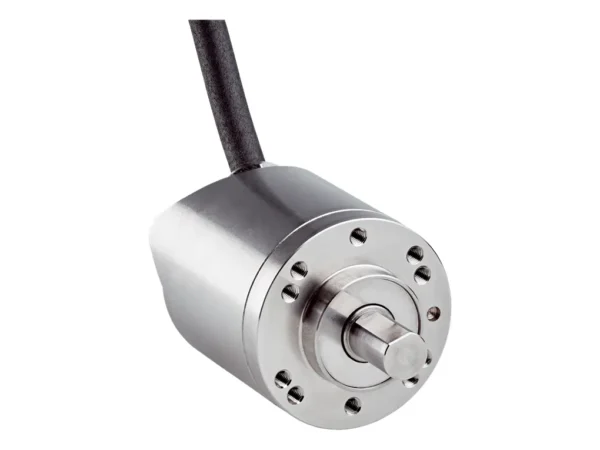

Home Enkoderler AHM36I-S3CM014X12 – 1099347 🔍 AHM36I-S3CM014X12 – 1099347 ✉ Teklif Al Teklif Al Stok kodu: 1099347 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Number of steps per revolution (max. resolution) 16,384 (14 bit) Number of revolutions 4,096 (12 bit) Max. resolution (number of steps per revolution x number of revolutions) 14 bit x 12 bit (16,384 x 4,096) Error limits G 0.35° (at 20 °C) Repeatability standard deviation σr 0.2° (at 20 °C) Interfaces Communication interface CANopen Data protocol CANopen CiA DS-301 V4.02, CiA DSP-305 LSS, Encoder Profile: – CIA DS-406, V3.2. – Class C2 Address setting 0 … 127, default: 5 Data transmission rate (baud rate) 20 kbit/s … 1,000 kbit/s, default: 125 kbit/s Initialization time 2 s Process data Position, speed, Temperature Parameterising data Number of steps per revolution Number of revolutions PRESET Counting direction Sampling rate for speed calculation Unit for output of the speed value Round axis functionality Electronic cams(2 channels x 8 cams) Available diagnostics data Minimum and maximum temperature Maximumspeed Power-on counter Operatinghours counter power-on/motion Counter of direction changes/number of movements cw/number of movements ccw Minimum andmaximum operating voltage Status information CANopen status via status LED Bus termination Via external terminator Electrical data Connection type Cable, 5-wire, universal, 5 m Supply voltage 10 … 30 V Power consumption ≤ 1.5 W (without load) Reverse polarity protection ✔ MTTFd: mean time to dangerous failure 270 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, face mount flange Shaft diameter 6 mm Shaft length 12 mm Weight 0.2 kg Shaft material Stainless steel 1,4305 Flange material Stainless steel 1,4305 Housing material Stainless steel 1,4305 Material, cable PUR Start up torque 1 Ncm (+20 °C) Operating torque < 1 Ncm (+20 °C) Permissible shaft loading 40 N (radial) 20 N (axial) Operating speed ≤ 6,000 min⁻¹ Moment of inertia of the rotor 2.5 gcm² Bearing lifetime 3.6 x 10^8 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP67 (IEC 60529) IP69K (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –40 °C … +85 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications ECLASS 5.0 27270502 ECLASS 5.1.4 27270502 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270502 ECLASS 8.0 27270502 ECLASS 8.1 27270502 ECLASS 9.0 27270502 ECLASS 10.0 27270502 ECLASS 11.0 27270502 ECLASS 12.0 27270502 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 842E-CM-MIP1BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP14BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 1734-IJALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP13BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Number of steps per revolution (max. resolution) 16,384 (14 bit) Number of revolutions 4,096 (12 bit) Max. resolution (number of steps per revolution x number of revolutions) 14 bit x 12 bit (16,384 x 4,096) Error limits G 0.35° (at 20 °C) Repeatability standard deviation σr 0.2° (at 20 °C) Interfaces Communication interface CANopen Data protocol CANopen CiA DS-301 V4.02, CiA DSP-305 LSS, Encoder Profile: – CIA DS-406, V3.2. – Class C2 Address setting 0 … 127, default: 5 Data transmission rate (baud rate) 20 kbit/s … 1,000 kbit/s, default: 125 kbit/s Initialization time 2 s Process data Position, speed, Temperature Parameterising data Number of steps per revolution Number of revolutions PRESET Counting direction Sampling rate for speed calculation Unit for output of the speed value Round axis functionality Electronic cams(2 channels x 8 cams) Available diagnostics data Minimum and maximum temperature Maximumspeed Power-on counter Operatinghours counter power-on/motion Counter of direction changes/number of movements cw/number of movements ccw Minimum andmaximum operating voltage Status information CANopen status via status LED Bus termination Via external terminator Electrical data Connection type Cable, 5-wire, universal, 5 m Supply voltage 10 … 30 V Power consumption ≤ 1.5 W (without load) Reverse polarity protection ✔ MTTFd: mean time to dangerous failure 270 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, face mount flange Shaft diameter 6 mm Shaft length 12 mm Weight 0.2 kg Shaft material Stainless steel 1,4305 Flange material Stainless steel 1,4305 Housing material Stainless steel 1,4305 Material, cable PUR Start up torque 1 Ncm (+20 °C) Operating torque < 1 Ncm (+20 °C) Permissible shaft loading 40 N (radial) 20 N (axial) Operating speed ≤ 6,000 min⁻¹ Moment of inertia of the rotor 2.5 gcm² Bearing lifetime 3.6 x 10^8 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP67 (IEC 60529) IP69K (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –40 °C … +85 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications ECLASS 5.0 27270502 ECLASS 5.1.4 27270502 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270502 ECLASS 8.0 27270502 ECLASS 8.1 27270502 ECLASS 9.0 27270502 ECLASS 10.0 27270502 ECLASS 11.0 27270502 ECLASS 12.0 27270502 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
