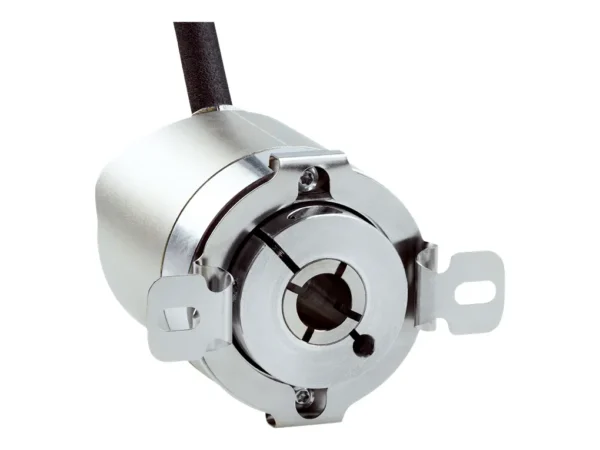

Home Enkoderler AHM36B-BAQJ012X12 – 1096746 🔍 AHM36B-BAQJ012X12 – 1096746 ✉ Teklif Al Teklif Al Stok kodu: 1096746 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Number of steps per revolution (max. resolution) 4,096 (12 bit) Number of revolutions 4,096 (12 bit) Max. resolution (number of steps per revolution x number of revolutions) 12 bit x 12 bit (4,096 x 4,096) Error limits G 0.35° (at 20 °C) Repeatability standard deviation σr 0.25° (at 20 °C) Interfaces Communication interface IO-Link Communication Interface detail IO-Link V1.1 / COM3 (230,4 kBaud) Initialization time 2 s Cycle time ≤ 3.2 ms Smart Sensor Efficient communication, Enhanced Sensing Process data Position, speed Parameterising data Number of steps per revolution Number of revolutions PRESET Counting direction Sampling rate for speed calculation Unit for output of the speed value Status information Via status LED Electrical data Connection type Cable, 4-wire, universal, 0.5 m Supply voltage 18 … 30 V Power consumption ≤ 1.5 W Reverse polarity protection ✔ MTTFd: mean time to dangerous failure 240 years (EN ISO 13849-1) Mechanical data Mechanical design Blind hollow shaft Shaft diameter 6 mm Weight 0.12 kg Shaft material Stainless steel Flange material Aluminum Housing material Zinc Start up torque < 0.5 Ncm (+20 °C) Operating torque < 0.5 Ncm (+20 °C) Permissible movement static ± 0.3 mm, ± 0.3 mm (radial, axial) Permissible movement dynamic ± 0.1 mm (radial) ± 0.1 mm (axial) Operating speed ≤ 6,000 min⁻¹ Moment of inertia of the rotor 15 gcm² Bearing lifetime 2.0 x 10^9 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2, EN 61000-6-3 and EN 61131-9 Enclosure rating IP65 (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –20 °C … +70 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications ECLASS 5.0 27270502 ECLASS 5.1.4 27270502 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270502 ECLASS 8.0 27270502 ECLASS 8.1 27270502 ECLASS 9.0 27270502 ECLASS 10.0 27270502 ECLASS 11.0 27270502 ECLASS 12.0 27270502 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 847T-DL1A-RG02000ALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 1746-HSCEALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP6BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP1BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Number of steps per revolution (max. resolution) 4,096 (12 bit) Number of revolutions 4,096 (12 bit) Max. resolution (number of steps per revolution x number of revolutions) 12 bit x 12 bit (4,096 x 4,096) Error limits G 0.35° (at 20 °C) Repeatability standard deviation σr 0.25° (at 20 °C) Interfaces Communication interface IO-Link Communication Interface detail IO-Link V1.1 / COM3 (230,4 kBaud) Initialization time 2 s Cycle time ≤ 3.2 ms Smart Sensor Efficient communication, Enhanced Sensing Process data Position, speed Parameterising data Number of steps per revolution Number of revolutions PRESET Counting direction Sampling rate for speed calculation Unit for output of the speed value Status information Via status LED Electrical data Connection type Cable, 4-wire, universal, 0.5 m Supply voltage 18 … 30 V Power consumption ≤ 1.5 W Reverse polarity protection ✔ MTTFd: mean time to dangerous failure 240 years (EN ISO 13849-1) Mechanical data Mechanical design Blind hollow shaft Shaft diameter 6 mm Weight 0.12 kg Shaft material Stainless steel Flange material Aluminum Housing material Zinc Start up torque < 0.5 Ncm (+20 °C) Operating torque < 0.5 Ncm (+20 °C) Permissible movement static ± 0.3 mm, ± 0.3 mm (radial, axial) Permissible movement dynamic ± 0.1 mm (radial) ± 0.1 mm (axial) Operating speed ≤ 6,000 min⁻¹ Moment of inertia of the rotor 15 gcm² Bearing lifetime 2.0 x 10^9 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2, EN 61000-6-3 and EN 61131-9 Enclosure rating IP65 (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –20 °C … +70 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications ECLASS 5.0 27270502 ECLASS 5.1.4 27270502 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270502 ECLASS 8.0 27270502 ECLASS 8.1 27270502 ECLASS 9.0 27270502 ECLASS 10.0 27270502 ECLASS 11.0 27270502 ECLASS 12.0 27270502 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
