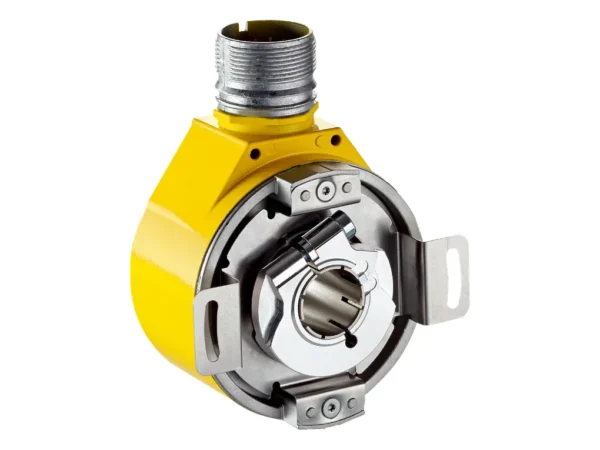

Home Enkoderler AFS60S-THSA262144 – 1082018 🔍 AFS60S-THSA262144 – 1082018 ✉ Teklif Al Teklif Al Stok kodu: 1082018 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Safety-related parameters Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3) Performance level PL e (EN ISO 13849-1) Category 3 (EN ISO 13849-1) 4 (EN ISO 13849-1) PFHD: Probability of dangerous failure per hour 5.5 x 10-9 at 40 °C 1.8 x 10-8 at 80 °C TM (mission time) 20 years (EN ISO 13849-1) Safety-related accuracy 0.09° category 3 0.35° category 4 Performance Number of steps per revolution (max. resolution) 262,144 (18 bit) Error limits G 0.05° Interfaces Communication interface SSI Communication Interface detail SSI + Sin/Cos Initialization time 2 s Position forming time < 1 µs Parameterising data Number of steps per revolution Preset position, preset position via hardware pin, counting direction, counting direction via hardware pin, reset factory setting, read out error memory, generate report Code type Gray Code sequence parameter adjustable CW/CCW configurable Clock frequency 100 kHz, ≤ 1 MHz Set (electronic adjustment) H-active (L = 0 – 1,5 V, H = 2,0 – Us V) CW/CCW (counting sequence when turning) L-active (L = 0 – 1,5 V, H = 2,0 – Us V) Sine/cosine periods per revolution 1,024 Output frequency ≤ 153.6 kHz Load resistance ≥ 120 Ω Signal before differential generation 0.5 Vpp, ± 20 % Signal offset before differential generation 2.5 V ± 10 % Signal after differential generation 1 Vpp, ± 20 % Electrical data Connection type Male connector, M23, 12-pin, radial Supply voltage 4.5 … 32 V Power consumption 0.7 W (without load) Reverse polarity protection ✔ Short-circuit protection ✔ Mechanical data Mechanical design Through hollow shaft Shaft diameter 15 mm Weight 0.25 kg Shaft material Stainless steel Flange material Die-cast zinc Material, stator coupling Stainless steel Housing material Aluminum die cast Start up torque ≤ 0.8 Ncm (+20 °C) Operating torque ≤ 0.6 Ncm (+20 °C) Permissible movement static ± 0.3 mm (radial) ± 0.5 mm (axial) Permissible movement dynamic ± 0.05 mm (radial) ± 0.1 mm (axial) Operating speed ≤ 6,000 min⁻¹ Moment of inertia of the rotor 56 gcm² Bearing lifetime 3.6 x 109 revolutions Ambient data EMC EN 61000-6-2 EN 61000-6-3 EN 61000-6-7 Enclosure rating IP65 (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –30 °C … +95 °C Storage temperature range –30 °C … +85 °C, without package Resistance to shocks 100 g, 6 ms (according to EN 60068-2-27) Resistance to vibration 10 g, 10 Hz … 1,000 Hz (EN 60068-2-6) Operating height (above sea level) ≤ 2,000 m (80 kPa) Protection class III (according to DIN EN 61140) Contamination rating 2 (IEC 60664-1) Classifications eCl@ss 5.0 27270502 eCl@ss 5.1.4 27270502 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270502 eCl@ss 8.0 27270502 eCl@ss 8.1 27270502 eCl@ss 9.0 27270502 eCl@ss 10.0 27270502 eCl@ss 11.0 27270502 eCl@ss 12.0 27270502 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 842E-CM-SIP14BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP1BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP13BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP6BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Safety-related parameters Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3) Performance level PL e (EN ISO 13849-1) Category 3 (EN ISO 13849-1) 4 (EN ISO 13849-1) PFHD: Probability of dangerous failure per hour 5.5 x 10-9 at 40 °C 1.8 x 10-8 at 80 °C TM (mission time) 20 years (EN ISO 13849-1) Safety-related accuracy 0.09° category 3 0.35° category 4 Performance Number of steps per revolution (max. resolution) 262,144 (18 bit) Error limits G 0.05° Interfaces Communication interface SSI Communication Interface detail SSI + Sin/Cos Initialization time 2 s Position forming time < 1 µs Parameterising data Number of steps per revolution Preset position, preset position via hardware pin, counting direction, counting direction via hardware pin, reset factory setting, read out error memory, generate report Code type Gray Code sequence parameter adjustable CW/CCW configurable Clock frequency 100 kHz, ≤ 1 MHz Set (electronic adjustment) H-active (L = 0 – 1,5 V, H = 2,0 – Us V) CW/CCW (counting sequence when turning) L-active (L = 0 – 1,5 V, H = 2,0 – Us V) Sine/cosine periods per revolution 1,024 Output frequency ≤ 153.6 kHz Load resistance ≥ 120 Ω Signal before differential generation 0.5 Vpp, ± 20 % Signal offset before differential generation 2.5 V ± 10 % Signal after differential generation 1 Vpp, ± 20 % Electrical data Connection type Male connector, M23, 12-pin, radial Supply voltage 4.5 … 32 V Power consumption 0.7 W (without load) Reverse polarity protection ✔ Short-circuit protection ✔ Mechanical data Mechanical design Through hollow shaft Shaft diameter 15 mm Weight 0.25 kg Shaft material Stainless steel Flange material Die-cast zinc Material, stator coupling Stainless steel Housing material Aluminum die cast Start up torque ≤ 0.8 Ncm (+20 °C) Operating torque ≤ 0.6 Ncm (+20 °C) Permissible movement static ± 0.3 mm (radial) ± 0.5 mm (axial) Permissible movement dynamic ± 0.05 mm (radial) ± 0.1 mm (axial) Operating speed ≤ 6,000 min⁻¹ Moment of inertia of the rotor 56 gcm² Bearing lifetime 3.6 x 109 revolutions Ambient data EMC EN 61000-6-2 EN 61000-6-3 EN 61000-6-7 Enclosure rating IP65 (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –30 °C … +95 °C Storage temperature range –30 °C … +85 °C, without package Resistance to shocks 100 g, 6 ms (according to EN 60068-2-27) Resistance to vibration 10 g, 10 Hz … 1,000 Hz (EN 60068-2-6) Operating height (above sea level) ≤ 2,000 m (80 kPa) Protection class III (according to DIN EN 61140) Contamination rating 2 (IEC 60664-1) Classifications eCl@ss 5.0 27270502 eCl@ss 5.1.4 27270502 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270502 eCl@ss 8.0 27270502 eCl@ss 8.1 27270502 eCl@ss 9.0 27270502 eCl@ss 10.0 27270502 eCl@ss 11.0 27270502 eCl@ss 12.0 27270502 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
