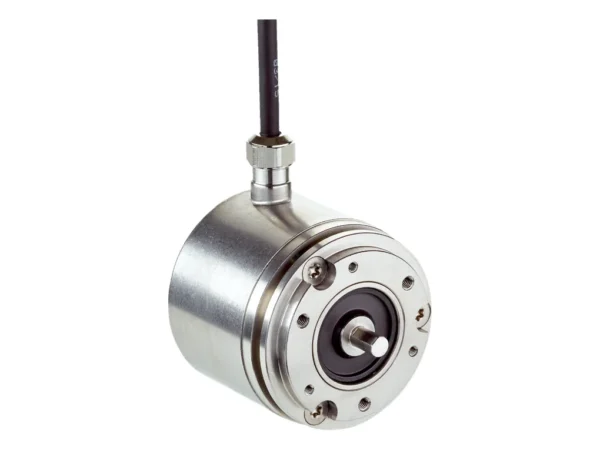

Home Enkoderler AFM60I-S1SK262144 – 1118421 🔍 AFM60I-S1SK262144 – 1118421 ✉ Teklif Al Teklif Al Stok kodu: 1118421 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Number of steps per revolution (max. resolution) 262,144 (18 bit) Number of revolutions 4,096 (12 bit) Max. resolution (number of steps per revolution x number of revolutions) 18 bit x 12 bit (262,144 x 4,096) Measuring step deviation ± 0.002° pulses > 10,000 Error limits G 0.03° Repeatability standard deviation σr 0.002° Interfaces Communication interface SSI Communication Interface detail SSI + Sin/Cos Initialization time 50 ms Position forming time < 1 µs Code type Gray Code sequence parameter adjustable CW/CCW (V/R̅) Interface signals Sin+, Sin-, Cos+, Cos-: analog, differential Clock frequency 2 MHz Set (electronic adjustment) H-active (L = 0 – 3 V, H = 4,0 – Us V) CW/CCW (counting sequence when turning) L-active (L = 0 – 1,5 V, H = 2,0 – Us V) Sine/cosine periods per revolution 1,024 Output frequency ≤ 200 kHz Load resistance ≥ 120 Ω Signal before differential generation 0.5 Vpp, ± 20 %, 120 Ω Signal offset before differential generation 2.5 V ± 10 % Signal after differential generation 1 Vpp, ± 20 %, 120 Ω Electrical data Connection type Cable, 12-wire, radial, 1.5 m Supply voltage 4.5 … 32 V DC Power consumption ≤ 0.5 W (without load) Reverse polarity protection ✔ MTTFd: mean time to dangerous failure 250 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, Servo flange Shaft diameter 6 mm Shaft length 10 mm Weight 0.5 kg Shaft material Stainless steel V2A Flange material Stainless steel V2A Housing material Stainless steel V2A Start up torque 1 Ncm (+20 °C) Operating torque 0.5 Ncm (+20 °C) Permissible shaft loading 80 N (radial) 40 N (axial) Operating speed 9,000 min⁻¹ Moment of inertia of the rotor 6.2 gcm² Bearing lifetime 3.0 x 10^9 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP67, shaft side (IEC 60529) IP67, housing side, cable connection (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –40 °C … +100 °C –30 °C … +100 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 10 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270502 eCl@ss 5.1.4 27270502 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270502 eCl@ss 8.0 27270502 eCl@ss 8.1 27270502 eCl@ss 9.0 27270502 eCl@ss 10.0 27270502 eCl@ss 11.0 27270502 eCl@ss 12.0 27270502 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 842E-CM-SIP12BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP13BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP10BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 1734-SSIALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Number of steps per revolution (max. resolution) 262,144 (18 bit) Number of revolutions 4,096 (12 bit) Max. resolution (number of steps per revolution x number of revolutions) 18 bit x 12 bit (262,144 x 4,096) Measuring step deviation ± 0.002° pulses > 10,000 Error limits G 0.03° Repeatability standard deviation σr 0.002° Interfaces Communication interface SSI Communication Interface detail SSI + Sin/Cos Initialization time 50 ms Position forming time < 1 µs Code type Gray Code sequence parameter adjustable CW/CCW (V/R̅) Interface signals Sin+, Sin-, Cos+, Cos-: analog, differential Clock frequency 2 MHz Set (electronic adjustment) H-active (L = 0 – 3 V, H = 4,0 – Us V) CW/CCW (counting sequence when turning) L-active (L = 0 – 1,5 V, H = 2,0 – Us V) Sine/cosine periods per revolution 1,024 Output frequency ≤ 200 kHz Load resistance ≥ 120 Ω Signal before differential generation 0.5 Vpp, ± 20 %, 120 Ω Signal offset before differential generation 2.5 V ± 10 % Signal after differential generation 1 Vpp, ± 20 %, 120 Ω Electrical data Connection type Cable, 12-wire, radial, 1.5 m Supply voltage 4.5 … 32 V DC Power consumption ≤ 0.5 W (without load) Reverse polarity protection ✔ MTTFd: mean time to dangerous failure 250 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, Servo flange Shaft diameter 6 mm Shaft length 10 mm Weight 0.5 kg Shaft material Stainless steel V2A Flange material Stainless steel V2A Housing material Stainless steel V2A Start up torque 1 Ncm (+20 °C) Operating torque 0.5 Ncm (+20 °C) Permissible shaft loading 80 N (radial) 40 N (axial) Operating speed 9,000 min⁻¹ Moment of inertia of the rotor 6.2 gcm² Bearing lifetime 3.0 x 10^9 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP67, shaft side (IEC 60529) IP67, housing side, cable connection (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –40 °C … +100 °C –30 °C … +100 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 10 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270502 eCl@ss 5.1.4 27270502 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270502 eCl@ss 8.0 27270502 eCl@ss 8.1 27270502 eCl@ss 9.0 27270502 eCl@ss 10.0 27270502 eCl@ss 11.0 27270502 eCl@ss 12.0 27270502 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
