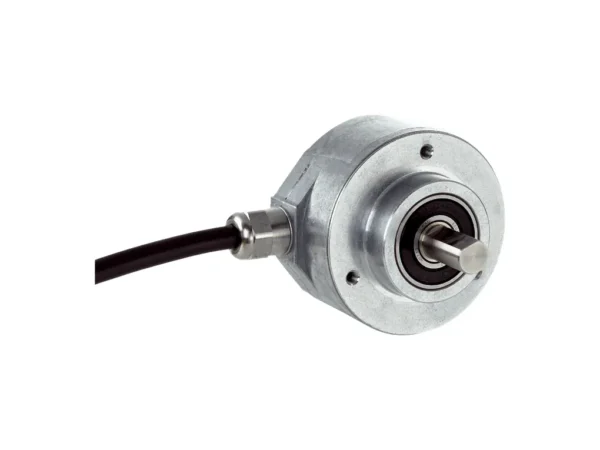

Home Enkoderler AFM60A-S4RL262144 – 1097681 🔍 AFM60A-S4RL262144 – 1097681 ✉ Teklif Al Teklif Al Stok kodu: 1097681 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Number of steps per revolution (max. resolution) 262,144 (18 bit) Number of revolutions 4,096 (12 bit) Max. resolution (number of steps per revolution x number of revolutions) 18 bit x 12 bit (262,144 x 4,096) Error limits G 0.03° Repeatability standard deviation σr 0.002° Interfaces Communication interface SSI Communication Interface detail SSI + incremental Initialization time 50 ms Position forming time < 1 µs Code type Gray Code sequence parameter adjustable CW/CCW (V/R̅) parameter adjustable Clock frequency ≤ 2 MHz Set (electronic adjustment) H-active (L = 0 – 3 V, H = 4,0 – Us V) CW/CCW (counting sequence when turning) L-active (L = 0 – 1,5 V, H = 2,0 – Us V) Pulses per revolution 1/4 of number of SSI steps per revolution Output frequency ≤ 820 kHz Load current ≤ 30 mA Electrical data Connection type Cable, 12-wire, radial, 3 m Supply voltage 4.5 … 32 V Power consumption ≤ 0.7 W (without load) Reverse polarity protection ✔ MTTFd: mean time to dangerous failure 250 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, face mount flange Shaft diameter 10 mm Shaft length 19 mm Weight 0.3 kg Shaft material Stainless steel Flange material Aluminum Housing material Aluminum die cast Start up torque < 0.5 Ncm (+20 °C) Operating torque < 0.3 Ncm (+20 °C) Permissible shaft loading 80 N (radial) 40 N (axial) Operating speed ≤ 9,000 min⁻¹ Moment of inertia of the rotor 6.2 gcm² Bearing lifetime 3.0 x 10^9 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP65, shaft side (IEC 60529) IP67, housing side (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –40 °C … +100 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 60 g, 6 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270502 eCl@ss 5.1.4 27270502 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270502 eCl@ss 8.0 27270502 eCl@ss 8.1 27270502 eCl@ss 9.0 27270502 eCl@ss 10.0 27270502 eCl@ss 11.0 27270502 eCl@ss 12.0 27270502 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 842E-CM-SIP7BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 1734-SSIALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP14BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP10BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Number of steps per revolution (max. resolution) 262,144 (18 bit) Number of revolutions 4,096 (12 bit) Max. resolution (number of steps per revolution x number of revolutions) 18 bit x 12 bit (262,144 x 4,096) Error limits G 0.03° Repeatability standard deviation σr 0.002° Interfaces Communication interface SSI Communication Interface detail SSI + incremental Initialization time 50 ms Position forming time < 1 µs Code type Gray Code sequence parameter adjustable CW/CCW (V/R̅) parameter adjustable Clock frequency ≤ 2 MHz Set (electronic adjustment) H-active (L = 0 – 3 V, H = 4,0 – Us V) CW/CCW (counting sequence when turning) L-active (L = 0 – 1,5 V, H = 2,0 – Us V) Pulses per revolution 1/4 of number of SSI steps per revolution Output frequency ≤ 820 kHz Load current ≤ 30 mA Electrical data Connection type Cable, 12-wire, radial, 3 m Supply voltage 4.5 … 32 V Power consumption ≤ 0.7 W (without load) Reverse polarity protection ✔ MTTFd: mean time to dangerous failure 250 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, face mount flange Shaft diameter 10 mm Shaft length 19 mm Weight 0.3 kg Shaft material Stainless steel Flange material Aluminum Housing material Aluminum die cast Start up torque < 0.5 Ncm (+20 °C) Operating torque < 0.3 Ncm (+20 °C) Permissible shaft loading 80 N (radial) 40 N (axial) Operating speed ≤ 9,000 min⁻¹ Moment of inertia of the rotor 6.2 gcm² Bearing lifetime 3.0 x 10^9 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP65, shaft side (IEC 60529) IP67, housing side (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –40 °C … +100 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 60 g, 6 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270502 eCl@ss 5.1.4 27270502 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270502 eCl@ss 8.0 27270502 eCl@ss 8.1 27270502 eCl@ss 9.0 27270502 eCl@ss 10.0 27270502 eCl@ss 11.0 27270502 eCl@ss 12.0 27270502 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
