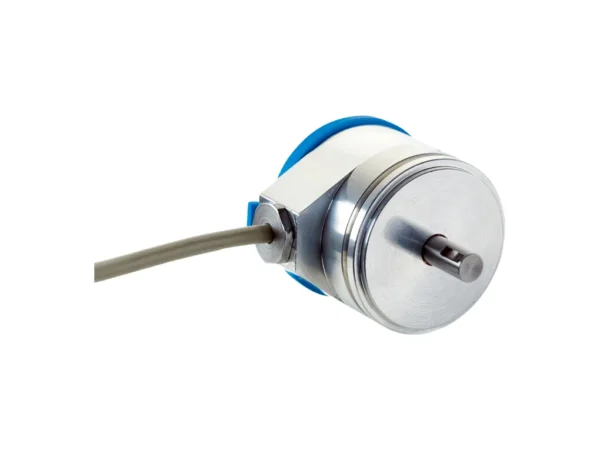

Home Enkoderler ACM36-K1K0-K01 – 6039751 🔍 ACM36-K1K0-K01 – 6039751 ✉ Teklif Al Teklif Al Stok kodu: 6039751 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Number of steps per revolution (max. resolution) 2,979 Number of revolutions 16 Max. resolution (number of steps per revolution x number of revolutions) 2,979 x 16 Resolution per measuring step ≥ 5.2 μA Resolution 0.11° … 1.93° Measurement range 0° … 5,760°, programmable Minimum measuring range ≥ 336° Accuracy ± 0.2 % based on the programmed angle Interfaces Communication interface Analog Communication Interface detail Current / 4…20 mA Code sequence parameter adjustable CW (clockwise) Load resistance ≤ 600 Ω Electrical data Connection type Cable, radial, 1.5 m Supply voltage 19 … 33 V DC Current consumption < 80 mA Reverse polarity protection ✔ MTTFd: mean time to dangerous failure 850 years (EN ISO 13849-1) Electrical wiring 3-wire Mechanical data Mechanical design Solid shaft, Servo flange Shaft diameter 6 mm Shaft length 12.4 mm Weight 0.1 kg Shaft material Stainless steel 1,4305 Flange material AlMgSi Housing material AlMgSi Material, cable PVC Start up torque 0.5 Ncm (+20 °C) Operating torque 0.2 Ncm (+20 °C) Permissible shaft loading 40 N (radial) 20 N (axial) Operating speed ≤ 10,000 min⁻¹ Moment of inertia of the rotor 10 gcm² Bearing lifetime 1 x 10^6 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-4 Enclosure rating IP65 Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –30 °C … +80 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 25 g, 11 ms (EN 60068-2-27) Resistance to vibration 4 g, 5 Hz … 100 Hz (EN 60068-2-6) Classifications ECLASS 5.0 27270502 ECLASS 5.1.4 27270502 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270502 ECLASS 8.0 27270502 ECLASS 8.1 27270502 ECLASS 9.0 27270502 ECLASS 10.0 27270502 ECLASS 11.0 27270502 ECLASS 12.0 27270502 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 842E-CM-SIP6BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP1BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP4BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP2BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Number of steps per revolution (max. resolution) 2,979 Number of revolutions 16 Max. resolution (number of steps per revolution x number of revolutions) 2,979 x 16 Resolution per measuring step ≥ 5.2 μA Resolution 0.11° … 1.93° Measurement range 0° … 5,760°, programmable Minimum measuring range ≥ 336° Accuracy ± 0.2 % based on the programmed angle Interfaces Communication interface Analog Communication Interface detail Current / 4…20 mA Code sequence parameter adjustable CW (clockwise) Load resistance ≤ 600 Ω Electrical data Connection type Cable, radial, 1.5 m Supply voltage 19 … 33 V DC Current consumption < 80 mA Reverse polarity protection ✔ MTTFd: mean time to dangerous failure 850 years (EN ISO 13849-1) Electrical wiring 3-wire Mechanical data Mechanical design Solid shaft, Servo flange Shaft diameter 6 mm Shaft length 12.4 mm Weight 0.1 kg Shaft material Stainless steel 1,4305 Flange material AlMgSi Housing material AlMgSi Material, cable PVC Start up torque 0.5 Ncm (+20 °C) Operating torque 0.2 Ncm (+20 °C) Permissible shaft loading 40 N (radial) 20 N (axial) Operating speed ≤ 10,000 min⁻¹ Moment of inertia of the rotor 10 gcm² Bearing lifetime 1 x 10^6 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-4 Enclosure rating IP65 Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –30 °C … +80 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 25 g, 11 ms (EN 60068-2-27) Resistance to vibration 4 g, 5 Hz … 100 Hz (EN 60068-2-6) Classifications ECLASS 5.0 27270502 ECLASS 5.1.4 27270502 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270502 ECLASS 8.0 27270502 ECLASS 8.1 27270502 ECLASS 9.0 27270502 ECLASS 10.0 27270502 ECLASS 11.0 27270502 ECLASS 12.0 27270502 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
