Tecnichal data
| Number of switch positions | 3 |
| Hole diameter | 30.5 mm |
| Type of electric connection | Screw connection |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |

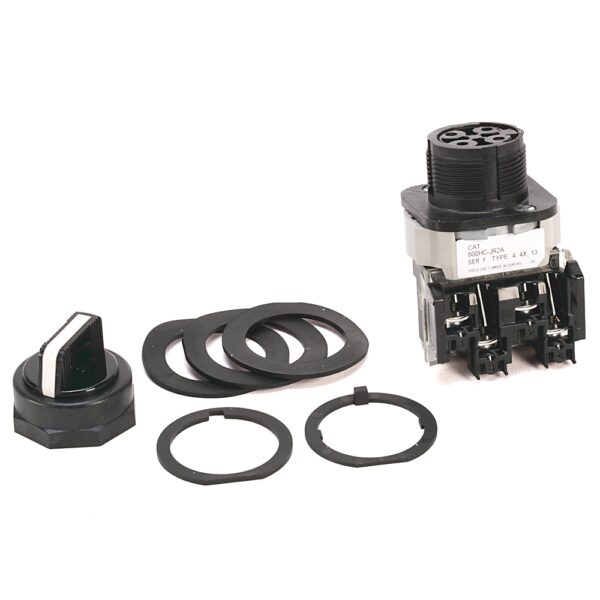

| Operator type | Selector switch |
| Contact block termination tightening torque | 6 – 8 lb – in / 0.7 – 0.9 N-m |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Operator function | Maintained |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Contact block termination wire range | 14 – 18 AWG (x2) |
| Suitable for illumination | No |
| Contact block configuration | 1-NO 1-NC standard contacts |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Contact block operational voltage, max | 600V AC, 600V DC |
| Terminations with finger safe covers | Yes |
| Operator cap/button material | Plastic |
| Operator construction/material | Plastic |
| Operator cap type | Standard knob |
| Operator cap color | Black with white Insert |
| Operating temperature | -25 ðC |
| Hazardous location rating | No |
| Humidity | 50 % |
| Storage temperature | -40 ðC |
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
