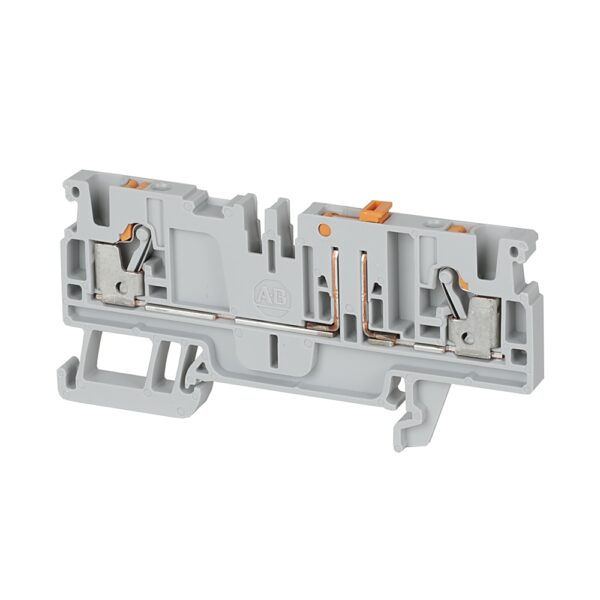

1492-P Push-in Terminal Blocks, 2.5 mm² (AWG 28 – AWG 12), 20 A, Knife Disconnect/Isolation Block, Single Level, 1 Point On Each Side Per Circuit – 1492-PKD3-B

Name: Allen Bradley 1492-PKD3-B | Klemens | Royal Endüstriyel
Brand: ALLEN BRADLEY
SKU: 1492-PKD3-B
Price: 350.00 TRY
Availability: InStock

✉ Teklif Al

Teklif Al

Stok kodu: 1492-PKD3-B Kategoriler: Klemensler Marka: ALLEN BRADLEY

Açıklama

Technical Specs

Basic Block Features
Wire Range (Rated Cross Section):2.5 mm² (AWG 28 – AWG 12)
UL/CSA Voltage Rating:300V AC/DC
UL/CSA Current Rating:20 A
Width:5.1 mm
Electrical Standards/ Certifications:IEC / UL / CSA / ATEX / IECEx
Color:Blue
Detail Data
Block Type:Knife Disconnect/Isolation Block
Circuit per Block:Single-Circuit
Connection Points:1 Point On Each Side Per Circuit
Number of Levels:Single Level
Wiring Diagram:1492-PKD3-B

1492-P Push-in Terminal Blocks, 2.5 mm² (AWG 28 – AWG 12), 20 A, Knife Disconnect/Isolation Block, Single Level, 1 Point On Each Side Per Circuit – 1492-PKD3-B
