Tecnichal data
| Number of auxiliary contacts as normally open contact | 3 |
| Number of auxiliary contacts as normally closed contact | 2 |
| Vibration resistance | IEC 60068-2-6 |
| Shock resistance | IEC 60068-2-27 |
| Altitude, max | 3000 m of installation site |
| Switching frequency, max | 600 ops/hr, AC-1 |
| Weight | AC/DC (electronic): 0.43 kg (0.95 lbs.) |
| Protection class | Contactor main contact: IP2X |
| Voltage type for actuating | DC |
| Rated control supply voltage at DC | 0 V |
| Type of electrical connection of main circuit | Screw connection |
| Rated impulse voltage withstand (Uimp) | 6 kV |
| NEMA size | 00…7 |
| High energy efficient coil, pick-up | 6 W @ 24V DC |
| Continuous ampere rating | 3-poles: 18 A |
| High energy efficient coil, hold-in | 1.7 W @ 24V DC |
| Main current circuit resistance | 0.46 mé |
| Rated isolation voltage (Ui) | 690V per IEC |

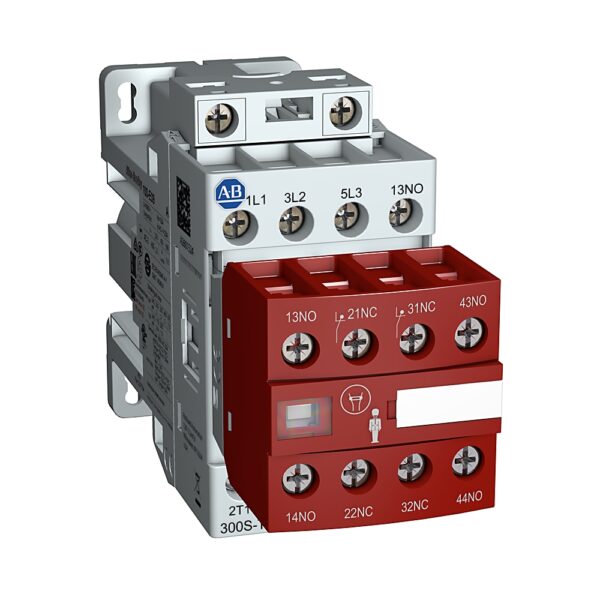

| Function | Energy-saving safety contactor |
| General purpose current (enclosed) | 16 A @ 600V per UL/CSA |
| Operating time, closing delay | 25 to 53 ms |
| Power dissipation | 1 W per pole at Ie, AC-1, 400V |
| Short time withstand (Icw) | 3-pole: 80 A for 30 s (40 ðC) |
| Operating time, opening delay | 17 to 29 ms |
| FLA | 25 A @ 600V, 3-phase per UL/CSA HVAC applications |
| Rated operational current and power (enclosed) | 9.6 A @ 220-240V, 3-phase per UL/CSA |
| LRA | 150 A @ 440-480V AC, 3-phase per UL/CSA HVAC applications |
| Electromagnetic compatibility | IEC 60947-1 – Environment A and B (300S size 00…1 only.) |
| Total power dissipation | 2.6 W at Ie, AC-3, 400V, AC/DC control (120-250V) |
| Operating limits, dropout | (ââ°¤0.60) x Us @ DC control |
| Operating limits, pick-up | (0.85…1.1) x Us @ 50/60 Hz |
| MCCB current rating | Type 2 (per IEC 60947-4-1): 28 A @ 400V, 70 kA available fault current |
| DIN fuses (gG) current rating | Type 2 (per IEC 60947-4-1): 32 A @ 400V, 100 kA available fault current |
| Rated voltage (Ue) | 24V, 48V, 110V, 220V, 440V DC |
| Rated operational current and power | 7.60 A @ 460V AC, 500000 electrical operations, 3-phase per UL/CSA elevator duty |
| Switching of lighting loads | Tungsten lamps: 25 A @ 600V, 3-phase (break all lines) per UL/CSA |
| UL class RK5 fuses rating | Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 30 A @ 600V, 5 kA available fault current |
| Rated operational current (Ie) | 9 A @ 690V, Star-Delta starting (50 Hz) |
| UL class J and CSA HRCI-J fuses rating | Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 30 A @ 600V, 100 kA available fault current |
| UL inverse-time circuit breaker | Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 60 A @ 600V, 5 kA available fault current |
| Switching of power transformers | Apparent power: 9 kVA @ 400V, AC-6a, 50 Hz (n = 30) |
| Rated operational power (Pe) | 7.5 kW @ 690V, AC-2, AC-3 switching of 3-phase motors (50 Hz), ambient temperature 60 ðC (140 ðF) |
| Horsepower rating, max | 3-poles: 5 Hp @ 575V, three-phase, full-load current must not exceed continuous ampere rating (60 Hz) |
| Switching of DC loads | 3-poles in series: 27 A @ 220V (Shunt-wound motors starting, reverse current breaking, reversing, stepping DC-3 at 60 ðC) |
| Optional accessories | Side-mount auxiliary contacts, Terminal shields, Terminal lugs, Terminal enlargements, Terminal extensions, Connection bars for 140G molded case circuit breakers, 140MG motor protection circuit breakers, and 140MG motor circuit protectors |
| Features | Mirror contact performance on auxiliary contacts, Red N.C. low-power auxiliary contacts used for feedback circuit, SUVA third-party certification, Sizes 00…5: AC/DC electronic coil with optional PLC interface, Sizes 6…8: AC/DC electronic coil with PLC |
| Contacts | 3 main poles with N.C. mirror feedback contacts |
| Climatic withstand | Category B according to IEC 60947-1, annex Q |
| Ambient temperature | Storage: -60…80 ðC (-76…176 ðF) |
| Coil insulation class | Class F per IEC 60947-4-1 |
