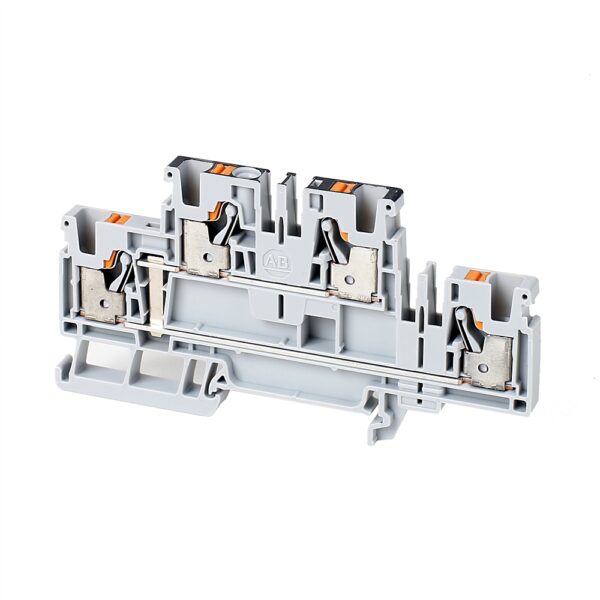

Name: Terminal Block, Push-in connection, IEC, Feed-Through, 4mm, Double Level Connected, Single Circuit, 4 Connection Points, Grey, Package Qty 50 Terminal Block, Push-in connection, IEC, Feed-Through, 4mm
Brand: ALLEN BRADLEY
SKU: 1492-PD4C
Price: 350.00 TRY
Availability: InStock

Terminal Block, Push-in connection, IEC, Feed-Through, 4mm, Double Level Connected, Single Circuit, 4 Connection Points, Grey, Package Qty 50 Terminal Block, Push-in connection, IEC, Feed-Through, 4mm, Double Level Connected, Single Circui – 1492-PD4C

✉ Teklif Al

Teklif Al

Stok kodu: 1492-PD4C Kategoriler: Klemensler Marka: ALLEN BRADLEY

Tecnichal data

Width	6.1 mm
Height	53.5 mm
Density	49 pcs/ft (100 pcs/m) per UL/CSA/IEC/ATEX
Colour	Grey
Length	100 mm
Wire strip length	12 mm per UL/CSA/IEC/ATEX
Wire range	26…10 AWG rated cross section per UL/CSA, 4 mmÃ² rated cross section per IEC, 4 mmÃ² rated cross section per ATEX
Current, max	32 A per UL/CSA, 32 A per IEC, 25 A per ATEX
Voltage rating	600V AC/DC per UL/CSA, 800V AC/DC per IEC, 550V AC/DC per ATEX
Number of levels	1
Internally connected stages	Yes
Type of electrical connection 1	Push-in clamp connection
Operating temperature	-60 Ã°C

Terminal Block, Push-in connection, IEC, Feed-Through, 4mm, Double Level Connected, Single Circuit, 4 Connection Points, Grey, Package Qty 50 Terminal Block, Push-in connection, IEC, Feed-Through, 4mm, Double Level Connected, Single Circui – 1492-PD4C
